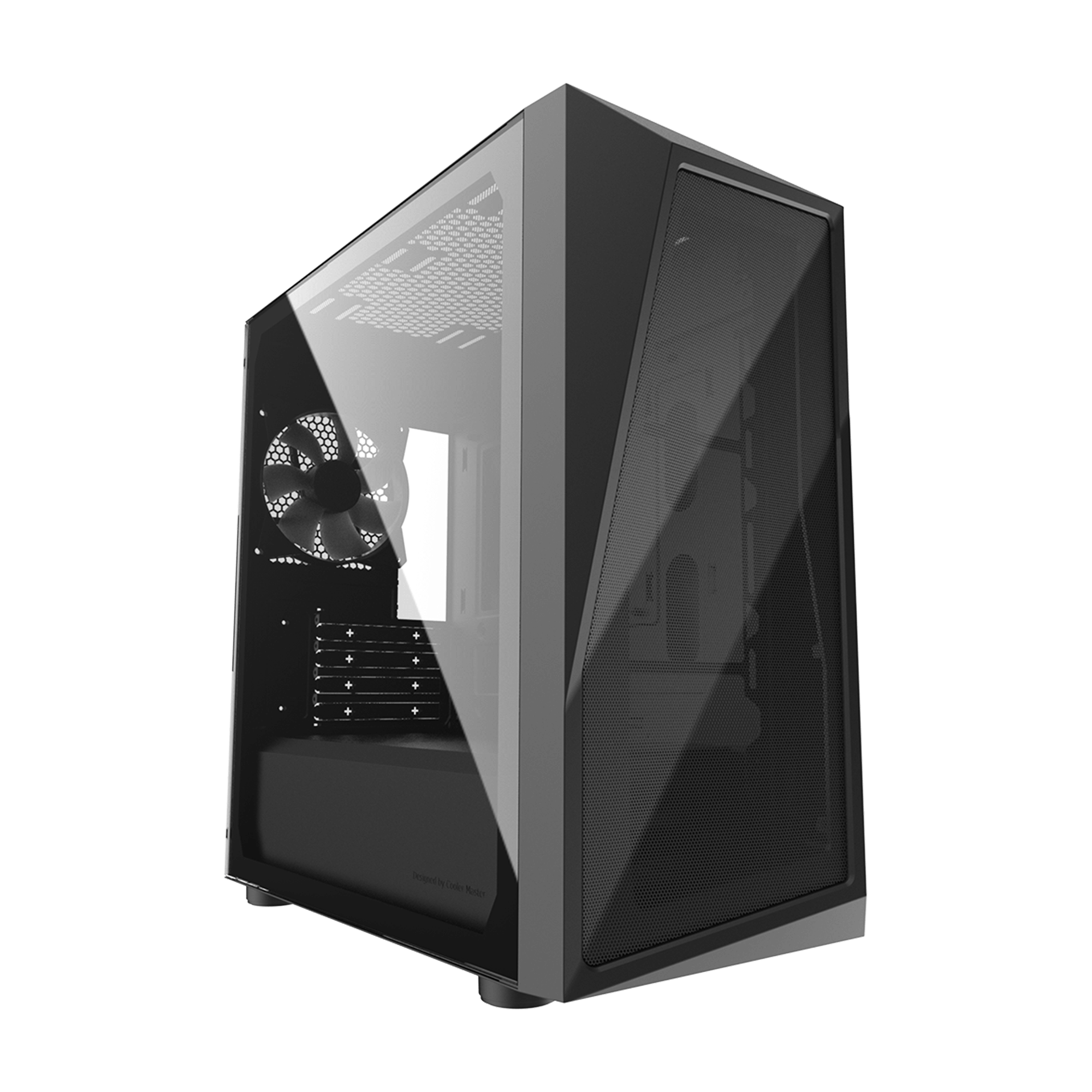

CMP 320L image number 0

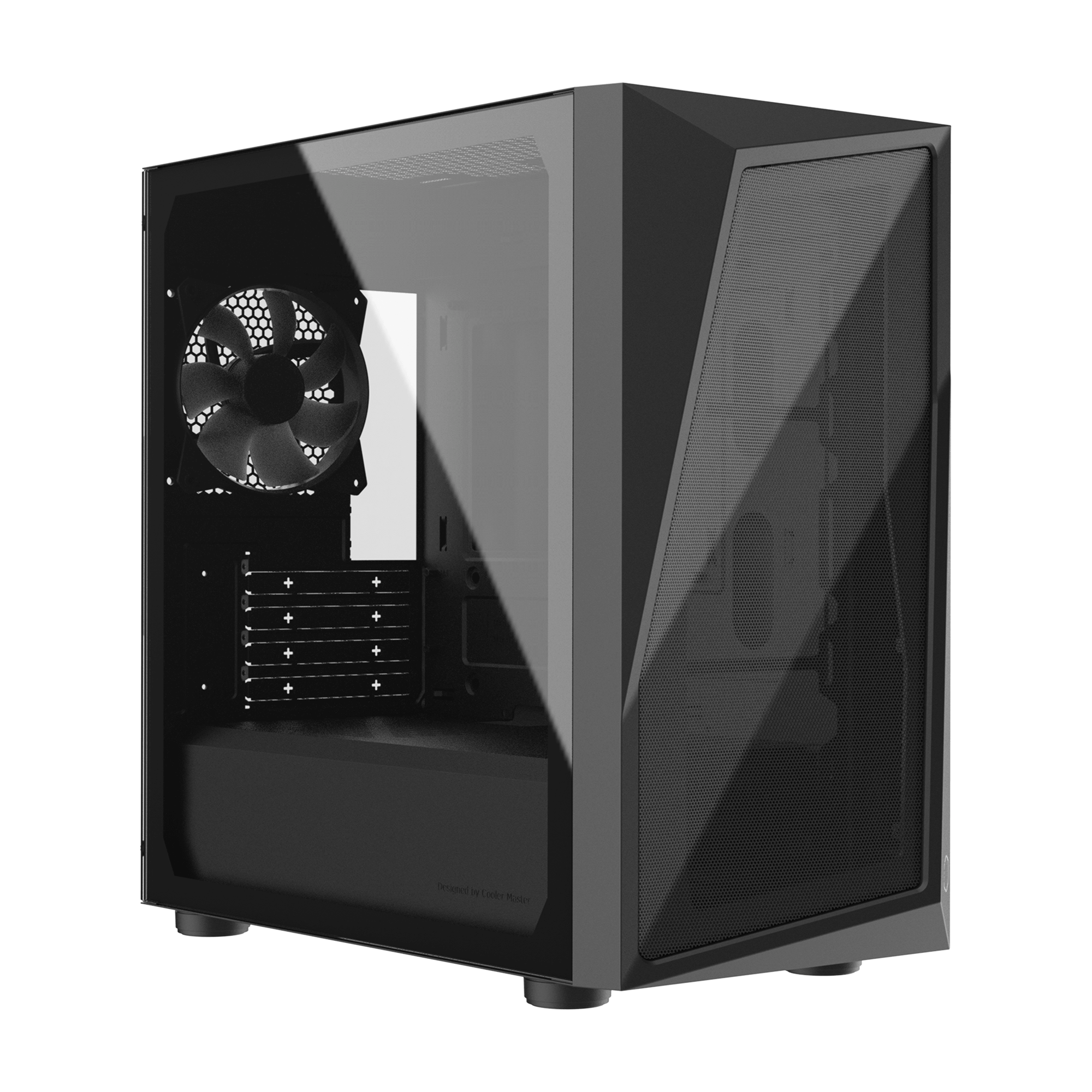

CMP 320L image number 1

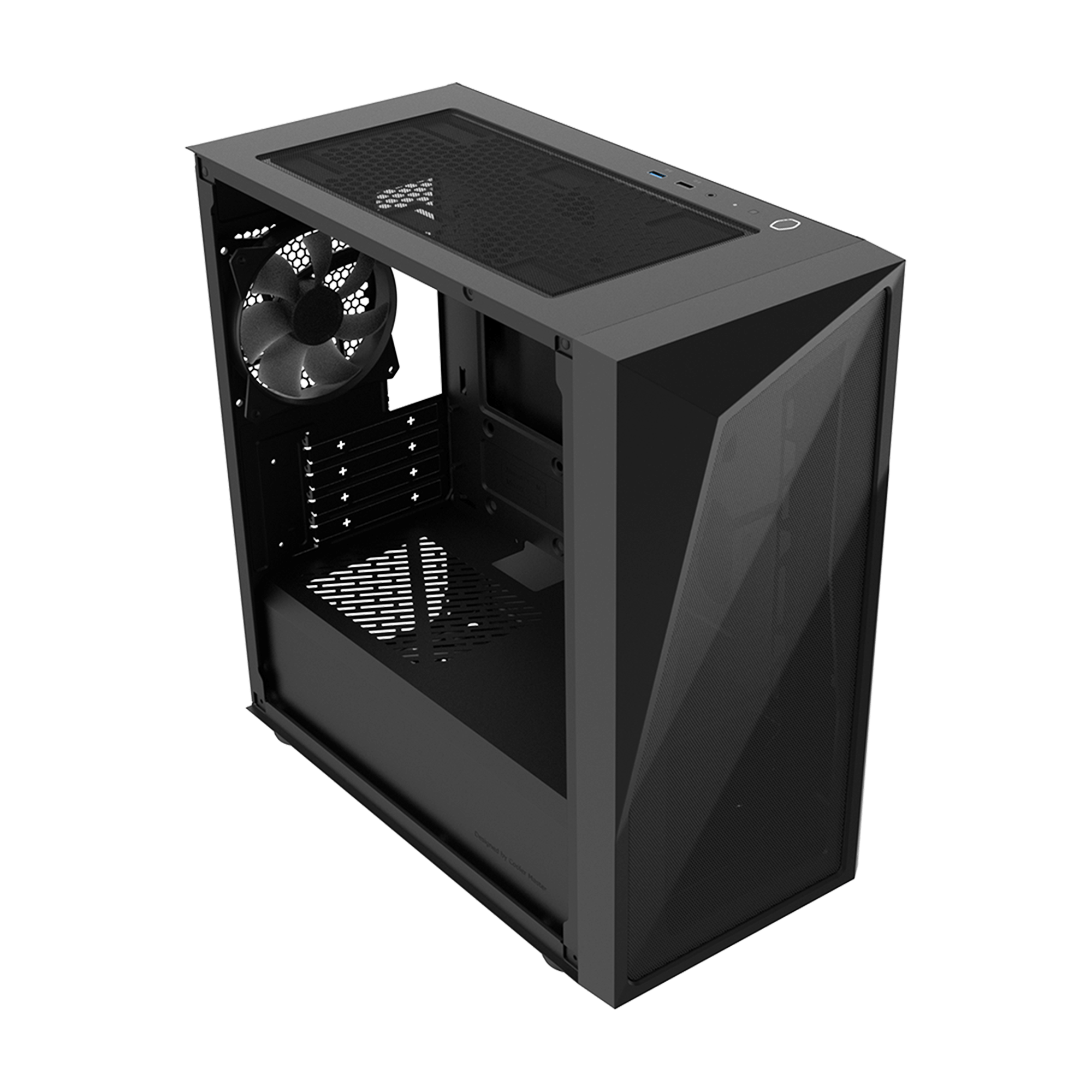

CMP 320L image number 2

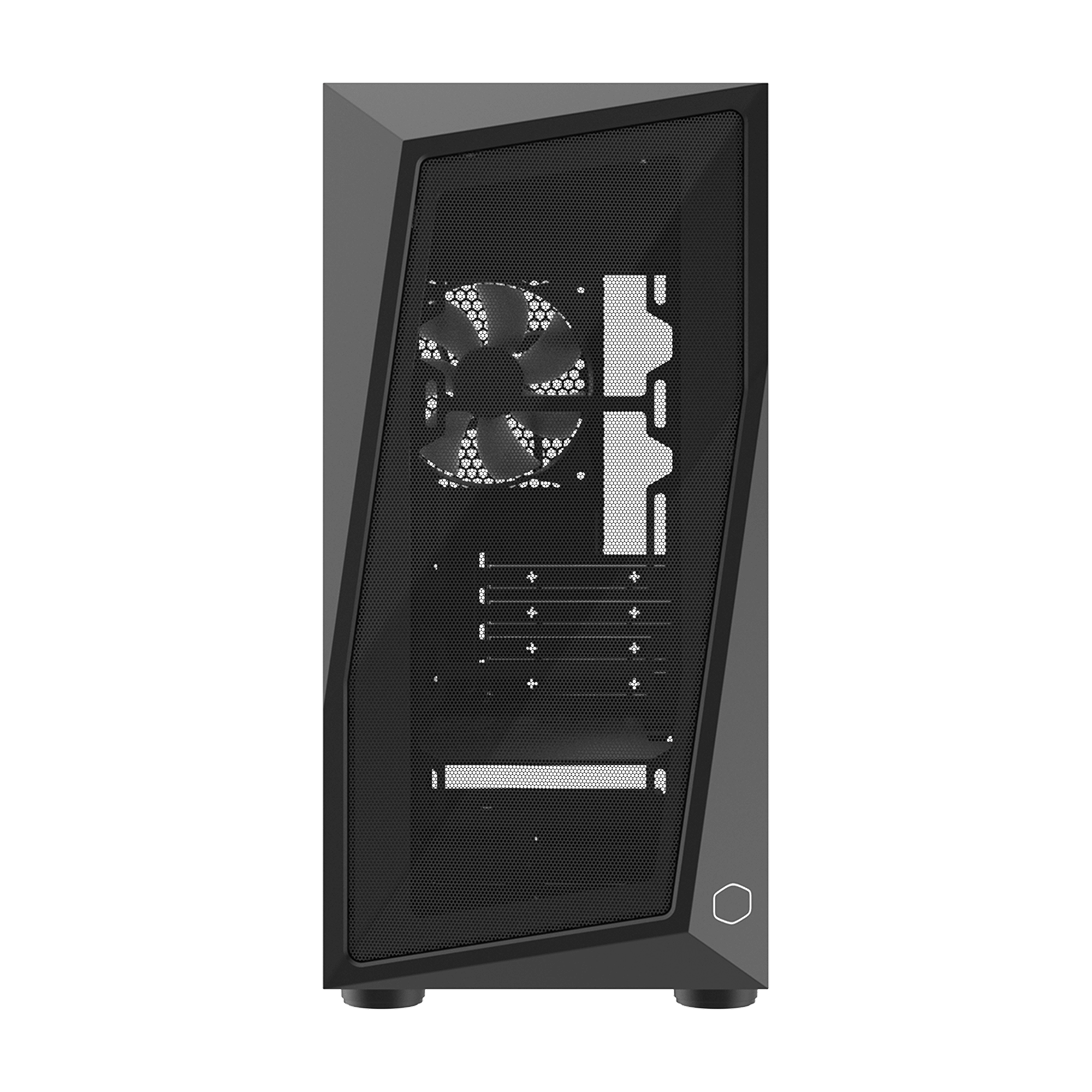

CMP 320L image number 3

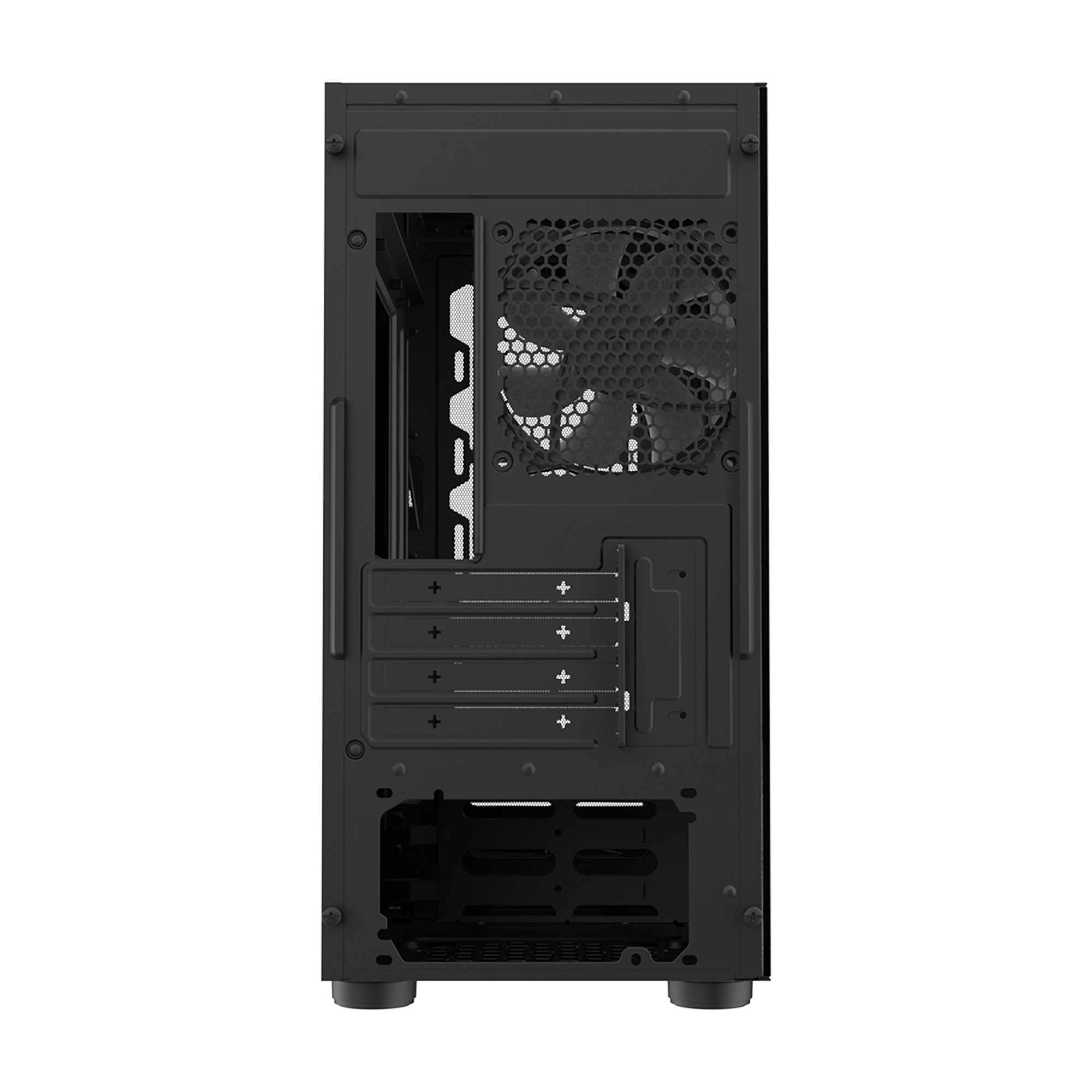

CMP 320L image number 4
CMP 320L
CMP 320L
CMP 320L
CMP 320L
CMP 320L

Cutting Edge Brilliance

CMP 320L

CMP 320L’s unique geode front panel allow for unrestricted airflow and optimal thermals.

Mesh Geode Front Panel

Versatile Cooling Options

Full Black Coating & PSU Cover

Breathable Power Supply Shroud

Specifications

  • Model Number CP320-KGNN-S03
  • Exterior Color Black
  • Materials - Exterior Steel, Plastic
  • Materials - Left Side Panel Tempered Glass
  • Dimensions (L x W x H) 445.5 x 204 x 425mm (Incl. Protrusions), 431.8 x 204 x 410mm (Excl. Protrusions)
  • Volume 38.52L (Excl. Protrusions)
  • Motherboard Support Mini-ITX, Micro-ATX
  • Expansion Slots 4
  • 5.25" Drive Bays 0
  • 2.5" / 3.5" Drive Bays (Combo) 2
  • 2.5" Drive Bays 2
  • I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 2.0
  • I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
  • Pre-installed Fans - Rear 1x 120mm MasterFan Lite
  • Fan Support - Top 2x 120mm, 2x 140mm
  • Fan Support - Front 2x120mm / 3x120mm (*Installed inside the case only)
  • Fan Support - Rear 1x 120mm
  • Radiator Support - Top 120 / 140 / 240 / 280mm (*Recommend AIO tubes face rear to avoid interference)
  • Radiator Support - Front 120 / 240mm
  • Radiator Support - Rear 120mm
  • Clearance - CPU Cooler 163.5mm
  • Clearance - PSU 160mm
  • Clearance - GFX 365mm (without front fans & radiator)
  • Cable Routing 16.5mm
  • Dust Filters Top, Bottom
  • Power Supply Support Bottom Mount, ATX
  • Warranty 2 years
  • Size Mini Tower
  • Series CMP Series
