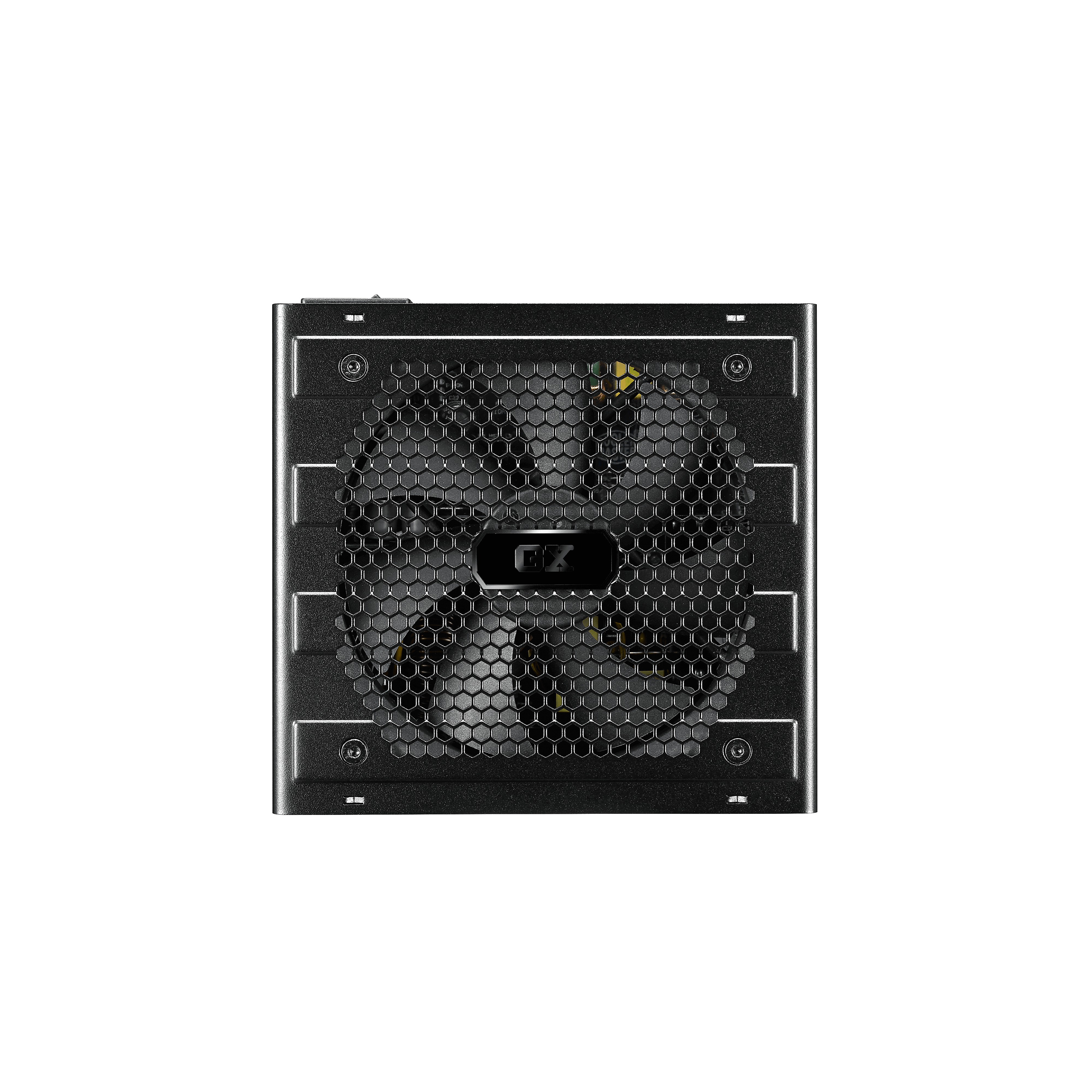

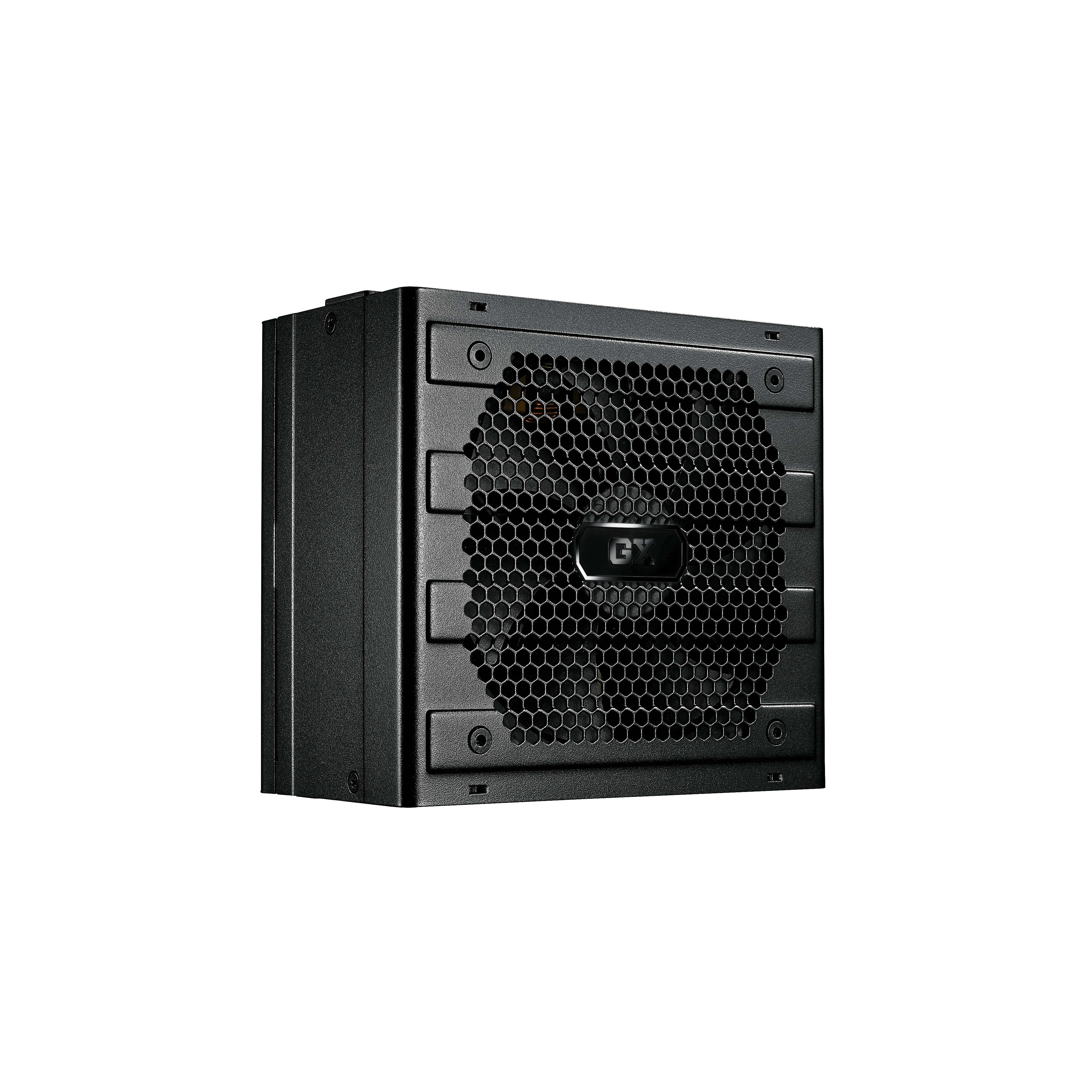

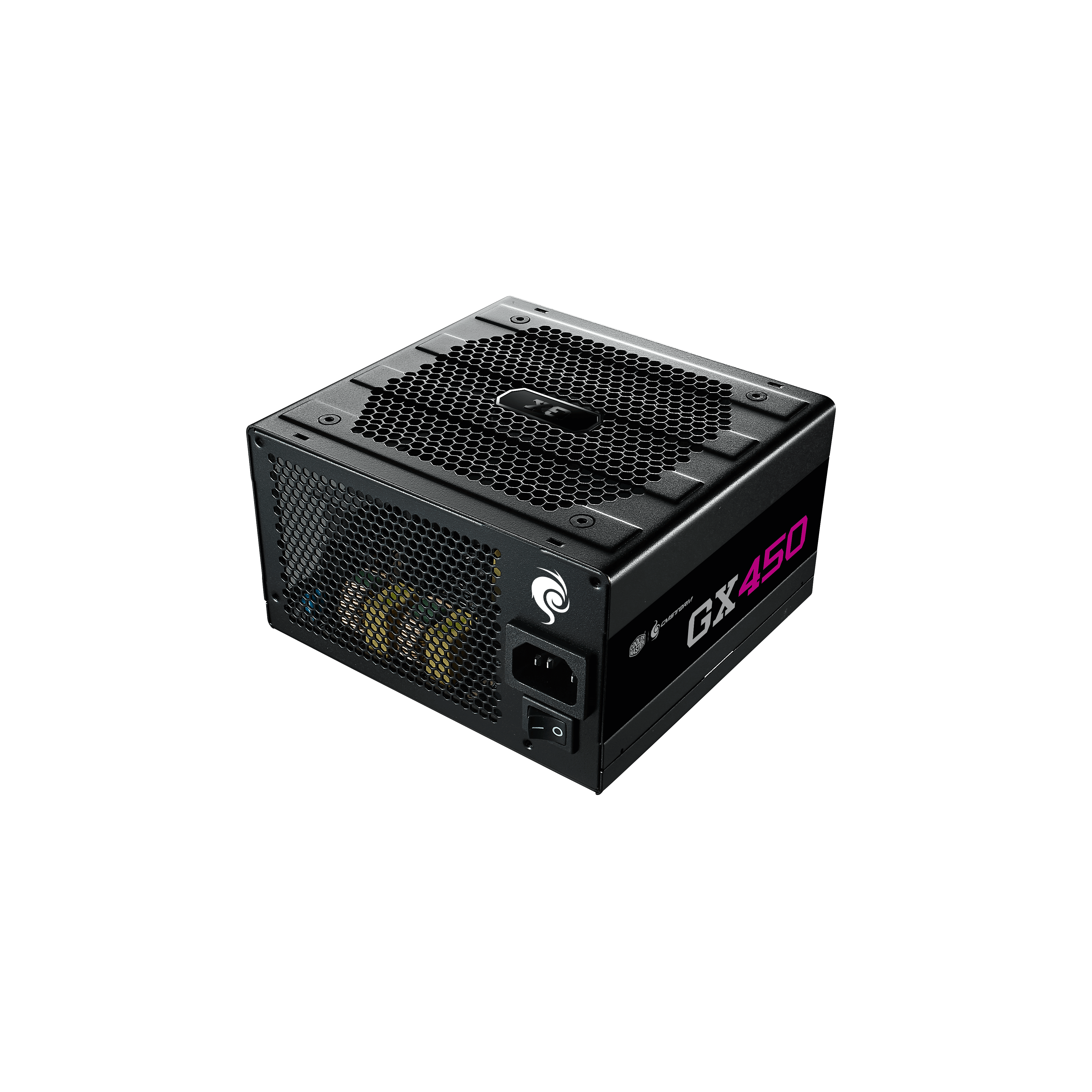

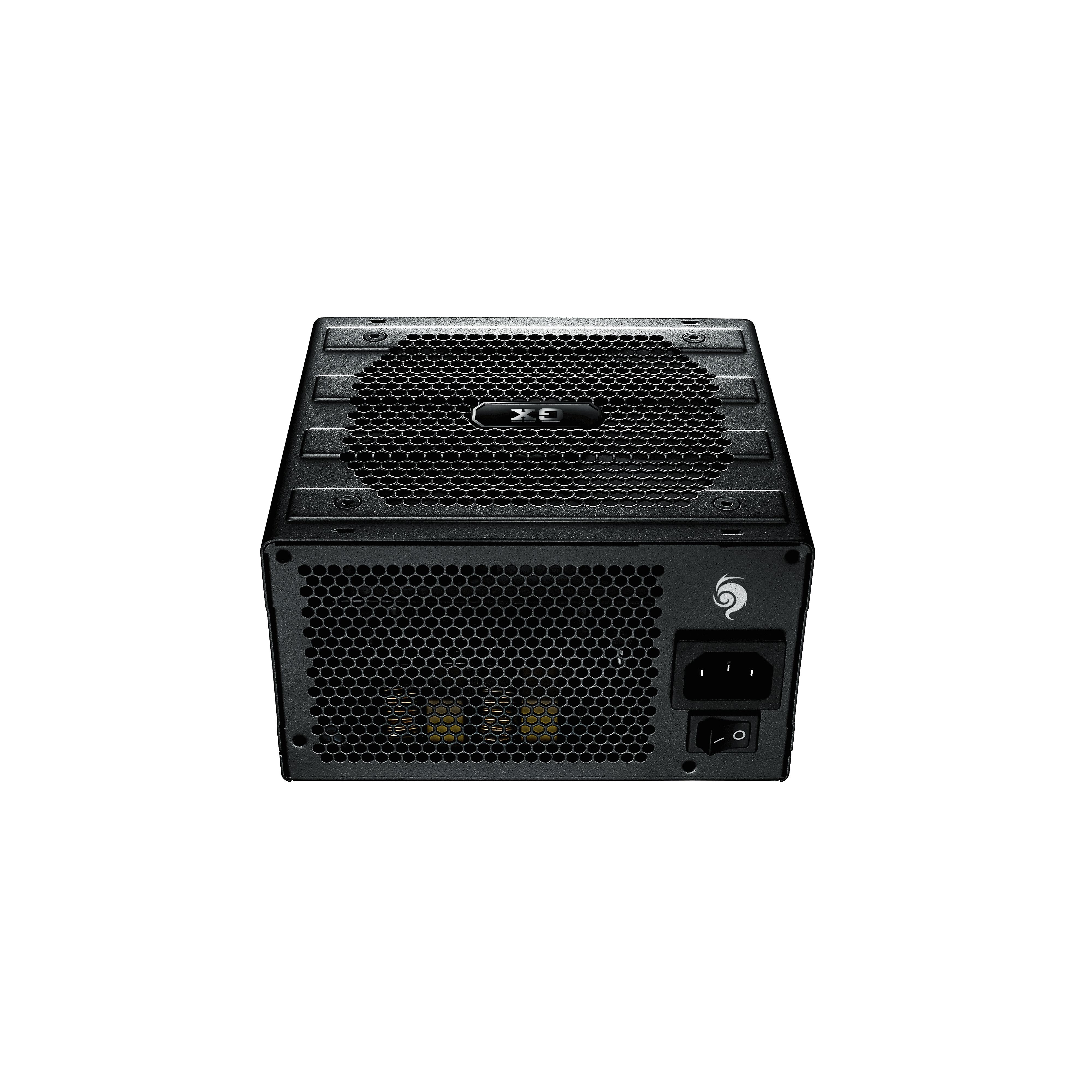

GX450 - CM Storm Edition

Specifications

• MB 20+4 Pin Connectors 1
• FDD Cable 4 Pin Connectors 1
• Input Range Full Range
• Power Good Signal 100 - 500 ms
• MTBF >100,000 hours @ 25℃ ambient
• Input Frequency 47-63Hz
• CPU 12V 4+4 Pin Connectors 1
• Category Under 500W
• Modular Non Modular
• Legacy Power Supplies
• 80 Plus Efficiency Bronze
• PFC Active PFC (>0.9 Typical)
• Efficiency 85% @ Typical Load
• PCI-e 6+2 Pin Connectors 2
• SATA Connectors 6
• EAN Code 4719512048047
• UPC Code 884102027000
• Input Voltage 100-240Vac
• Protections OVP
• Peripheral 4 Pin Connectors 3
• Protections SCP
• Protections UVP
• Protections OCP
• Dimensions (L x W x H) 150 x 140 x 86 mm / 5.9 x 5.5 x 3.4 inch
• Hold Up Time >16ms
• Regulatory CCC
• Regulatory CE
• Regulatory RCM
• Regulatory FCC
• Regulatory BSMI
• Regulatory UL
• Regulatory TUV
• Model RS450-ACAAB3-xx
• Product Name GX450 - CM Storm Edition
