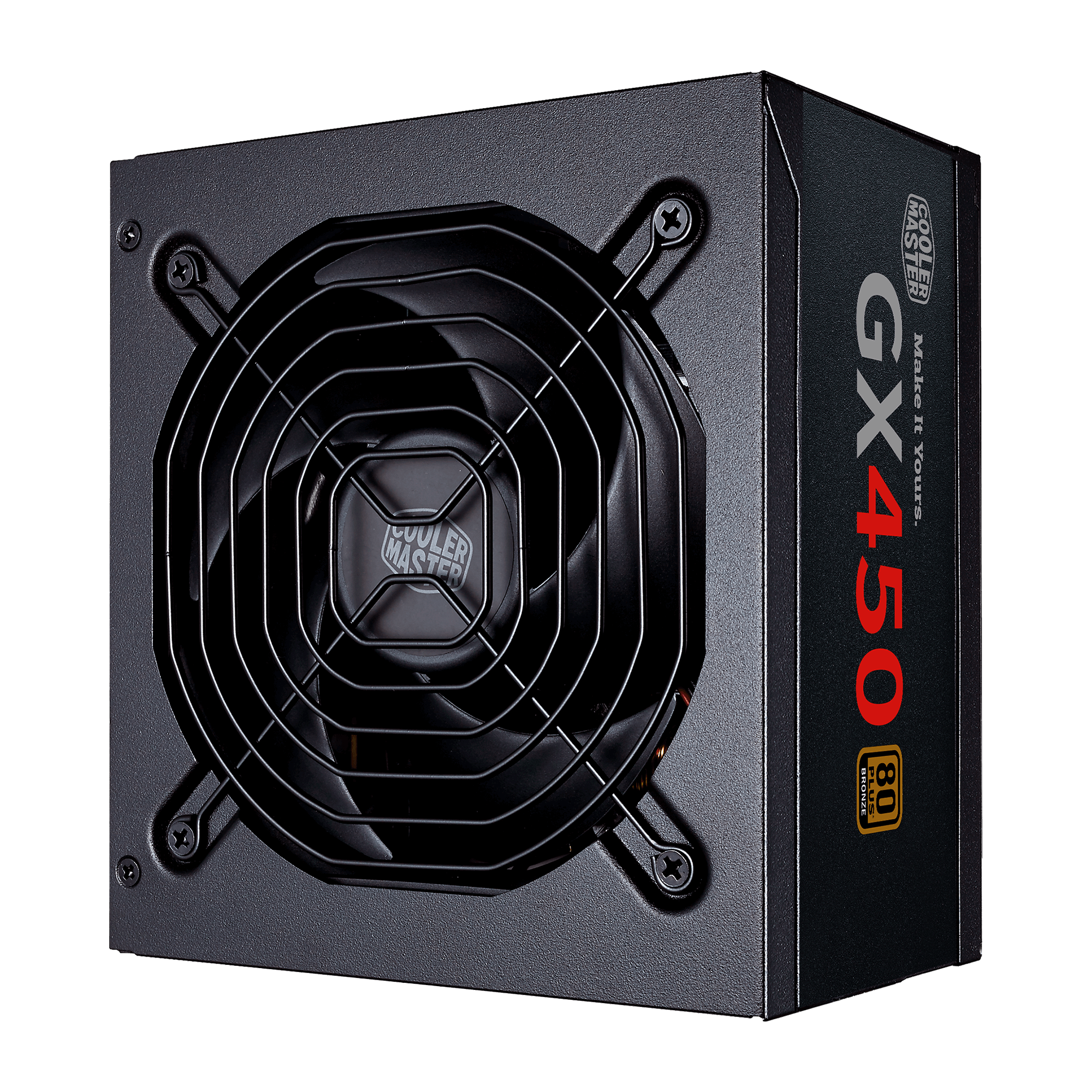

GX Bronze 450 image number 0

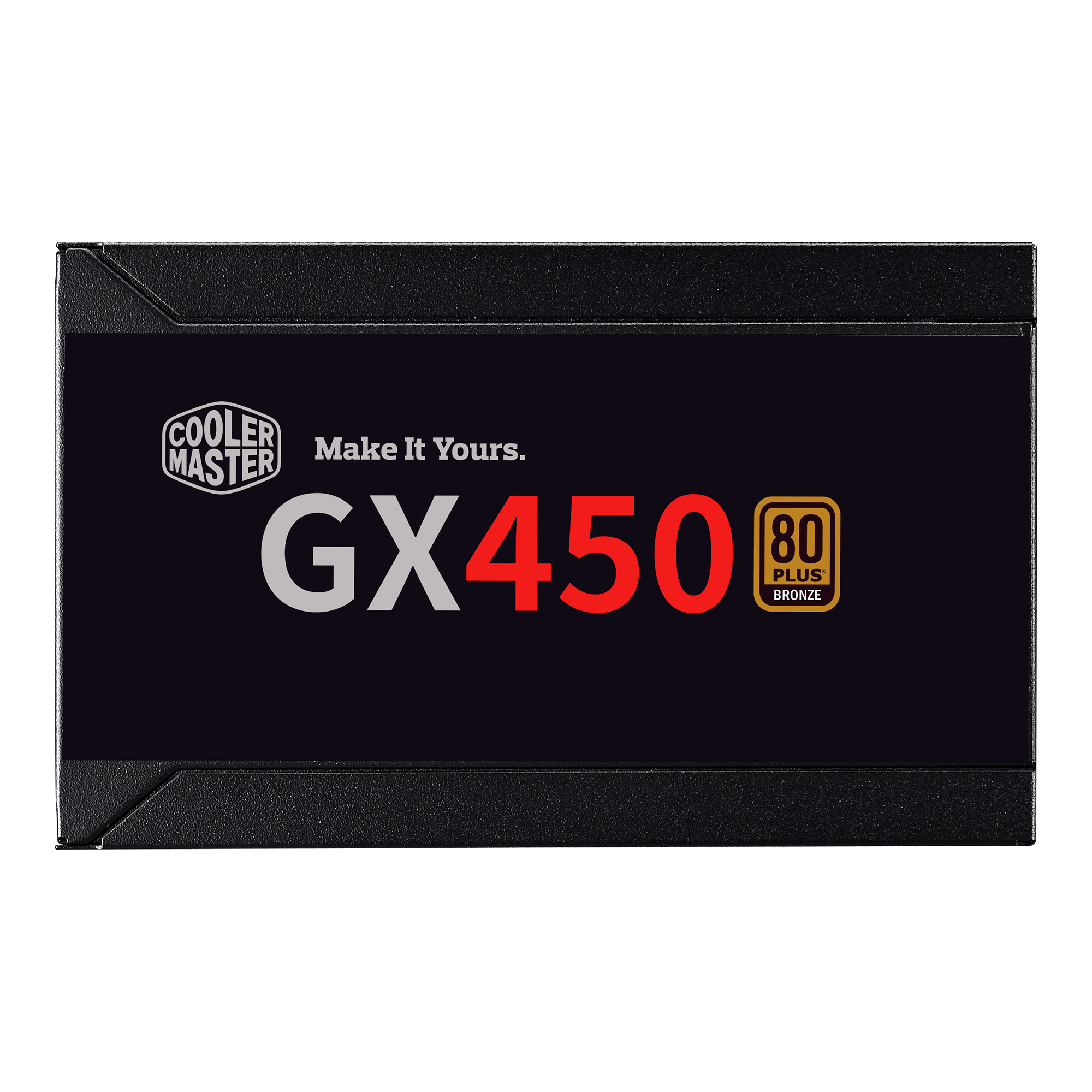

GX Bronze 450 image number 1

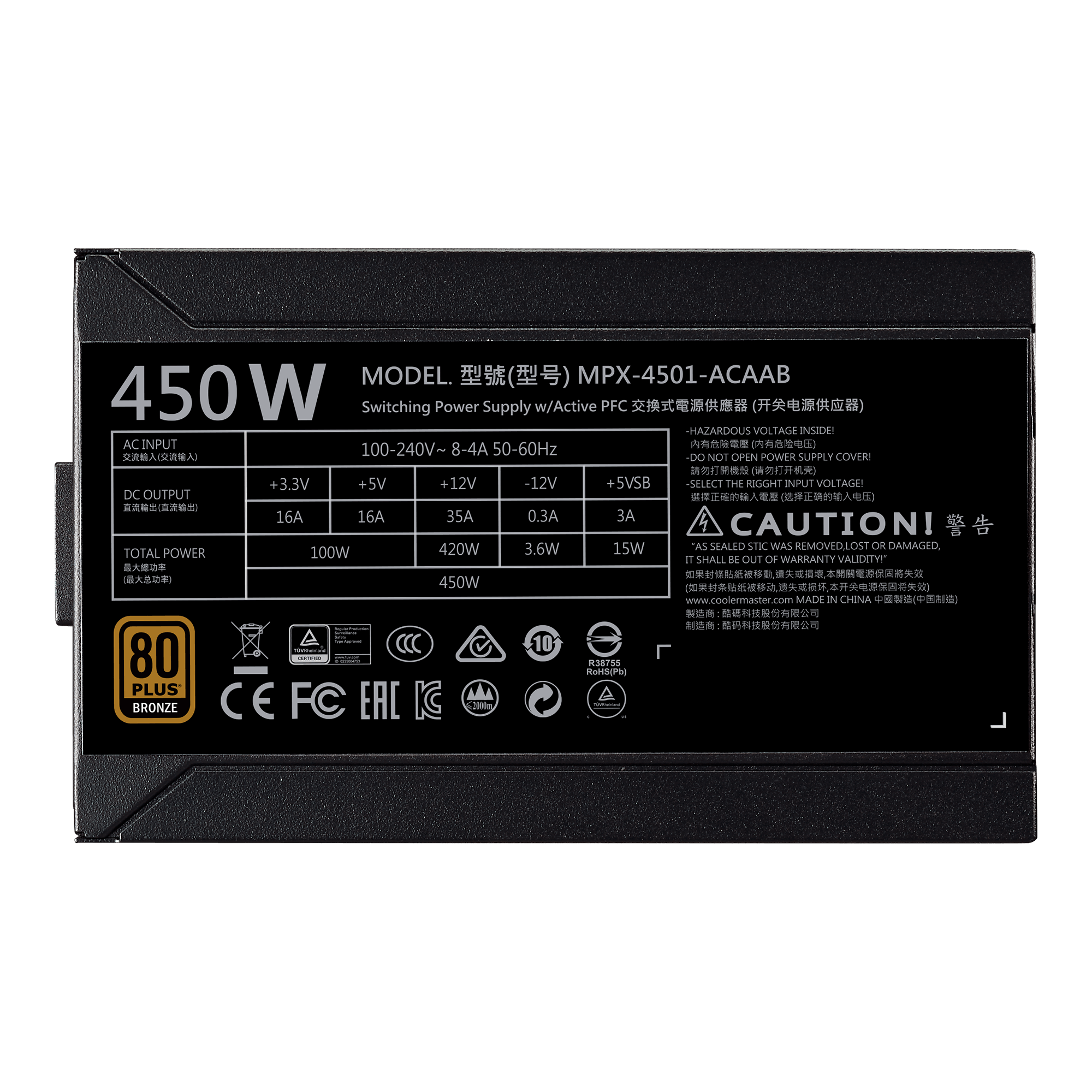

GX Bronze 450 image number 2

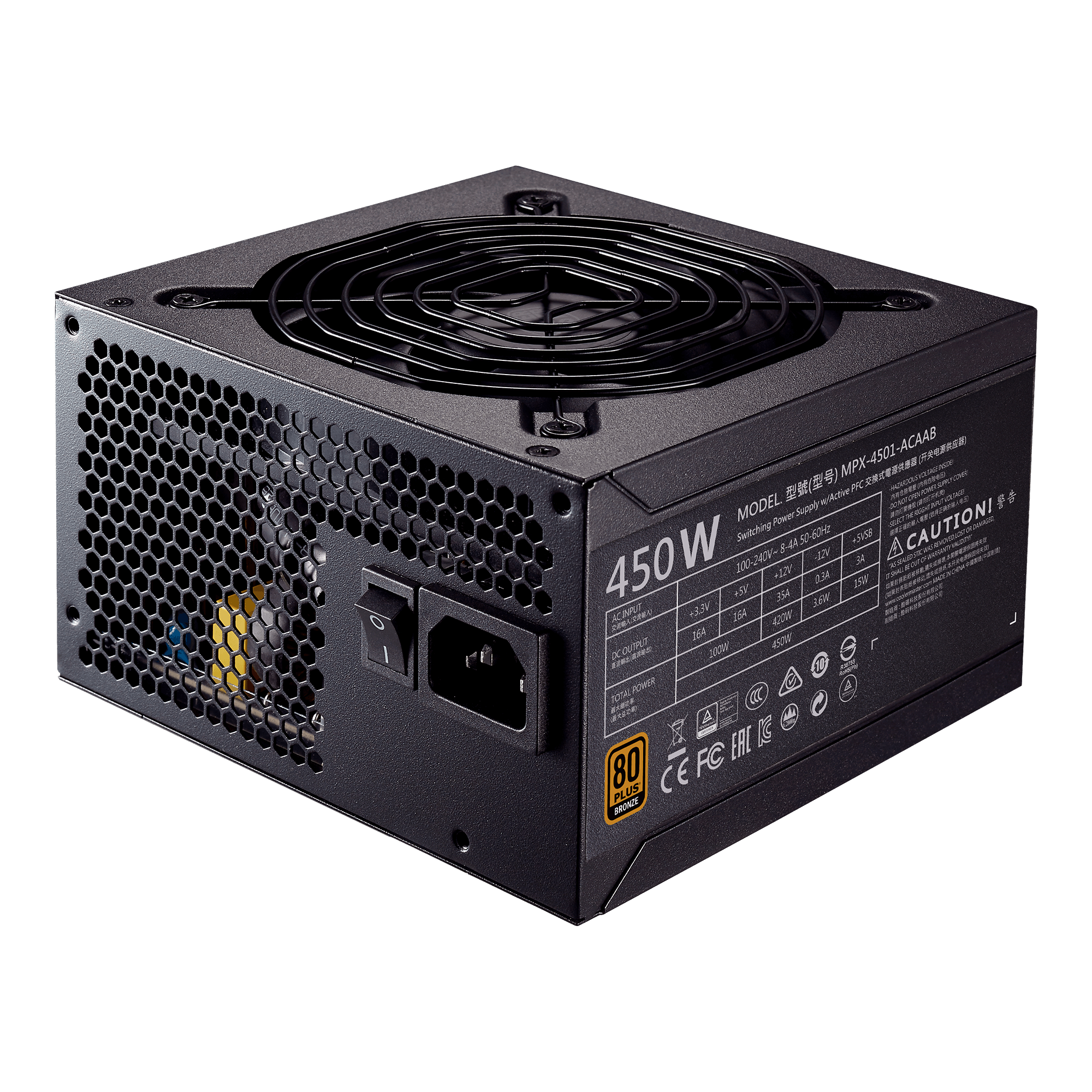

GX Bronze 450 image number 3

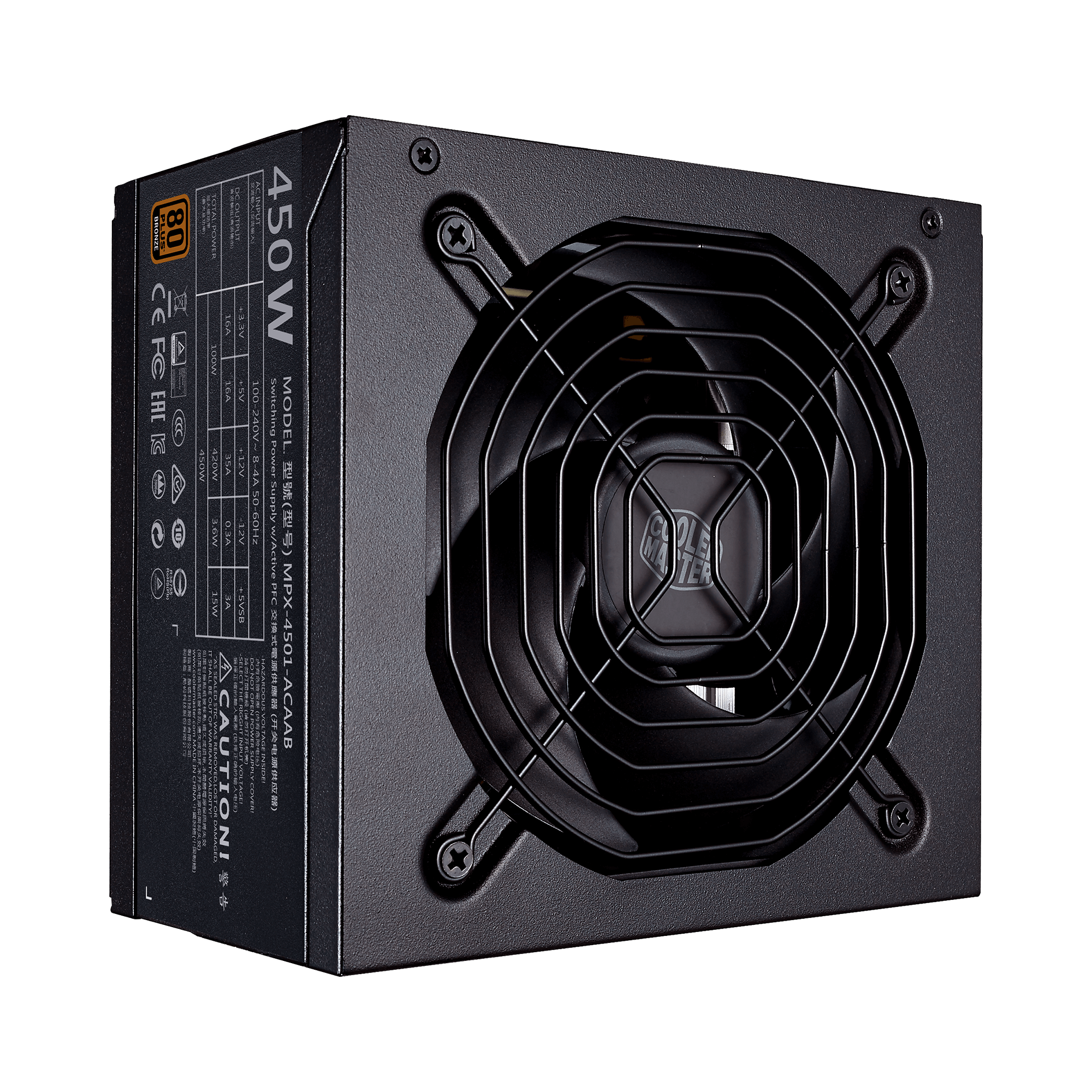

GX Bronze 450 image number 4

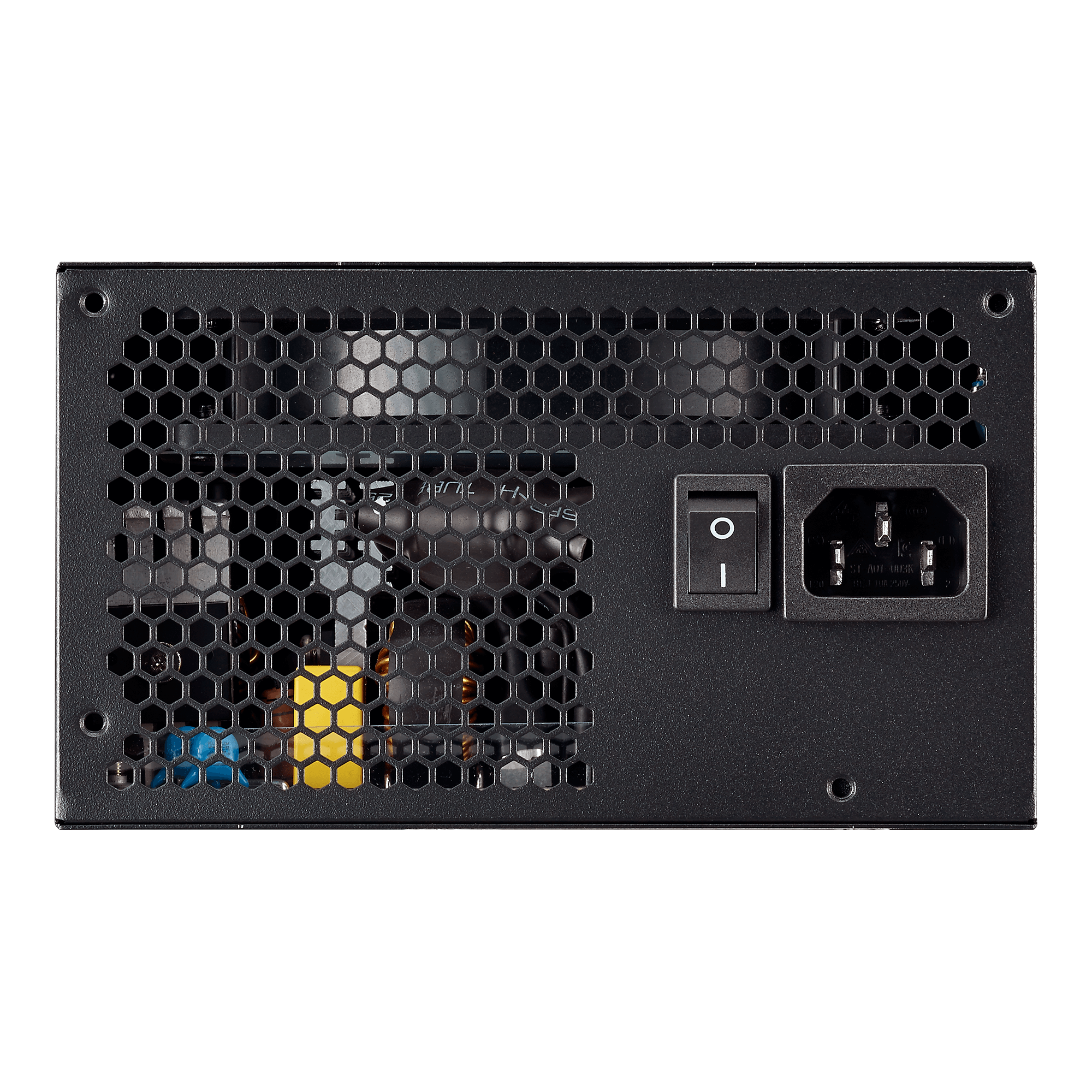

GX Bronze 450 image number 5

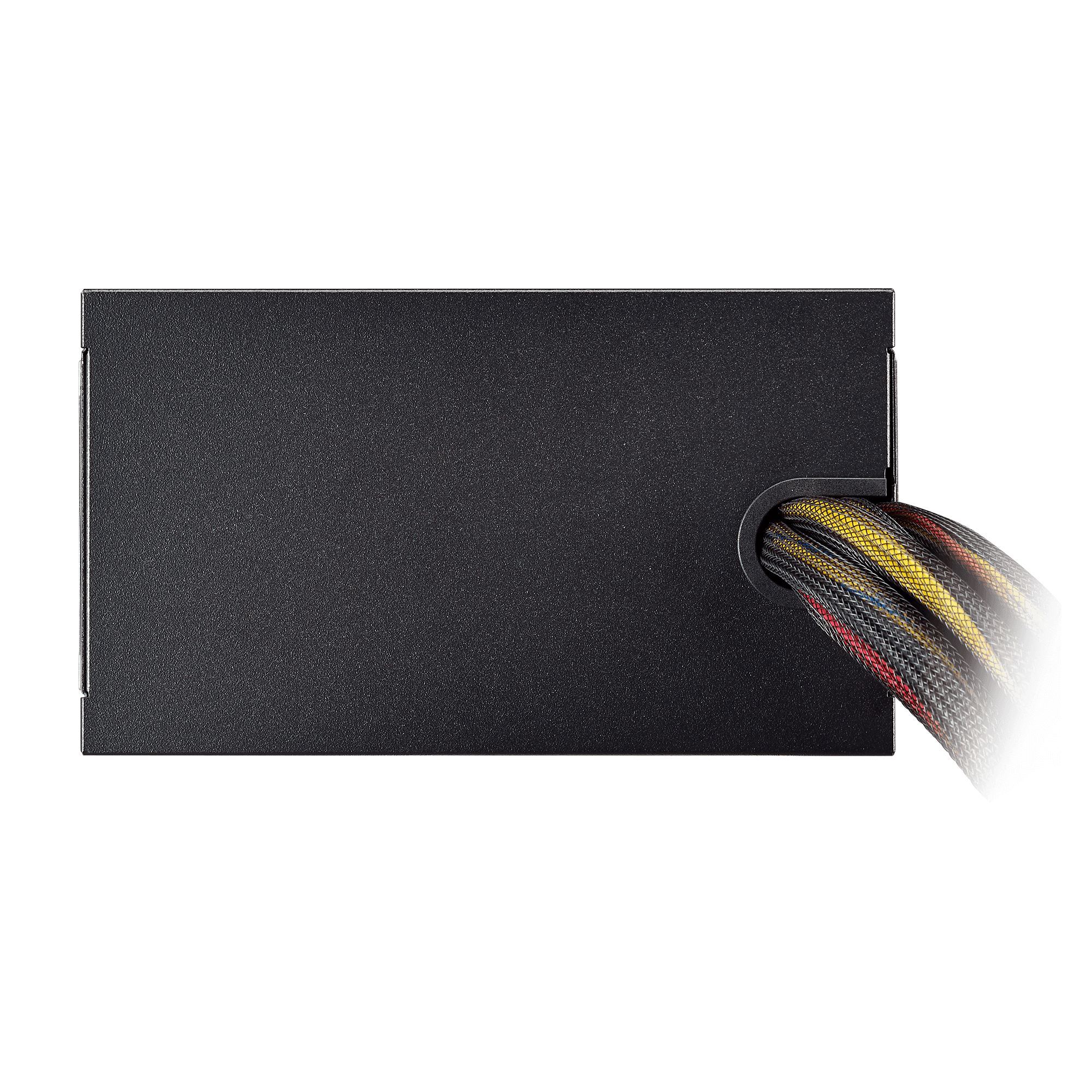

GX Bronze 450 image number 6

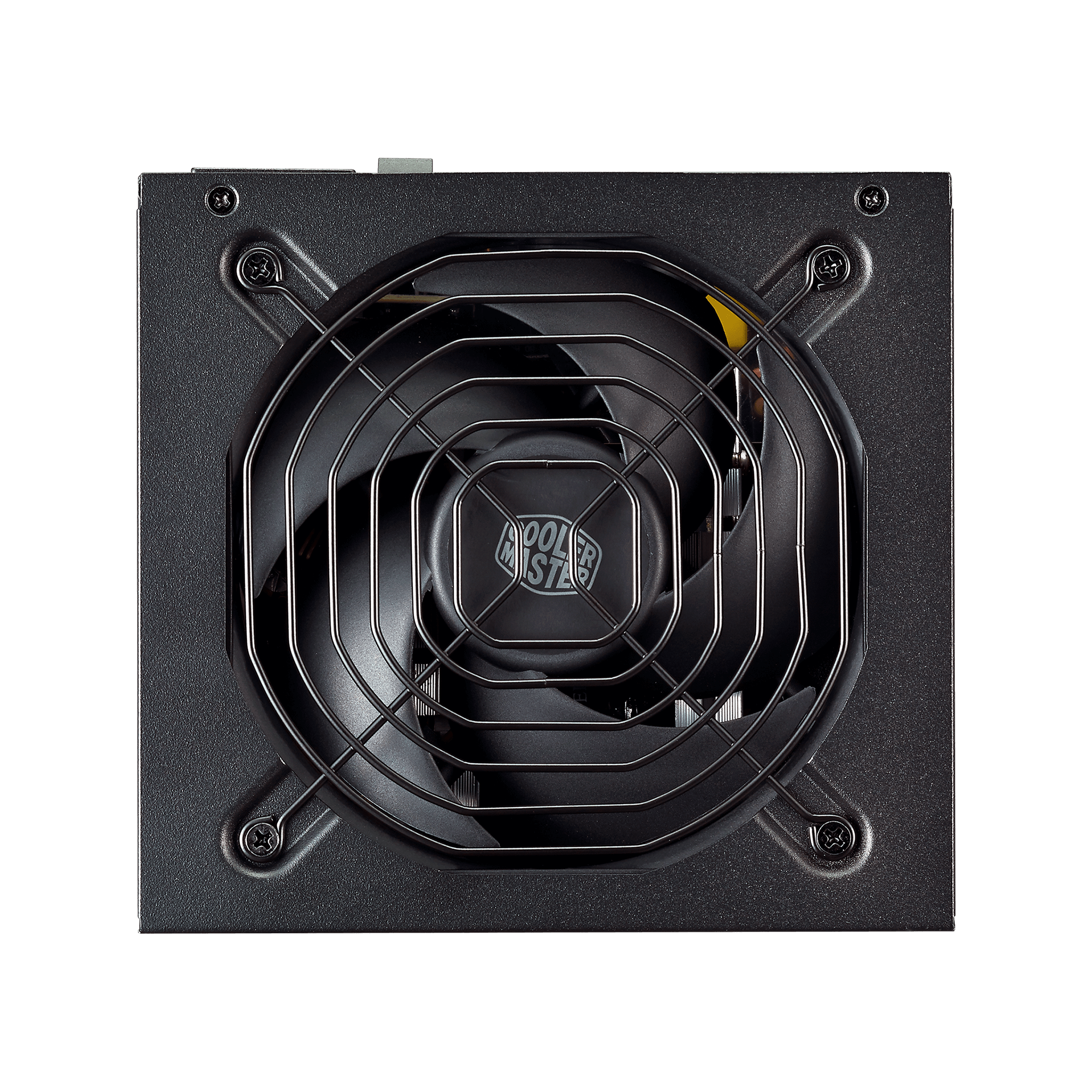

GX Bronze 450 image number 7

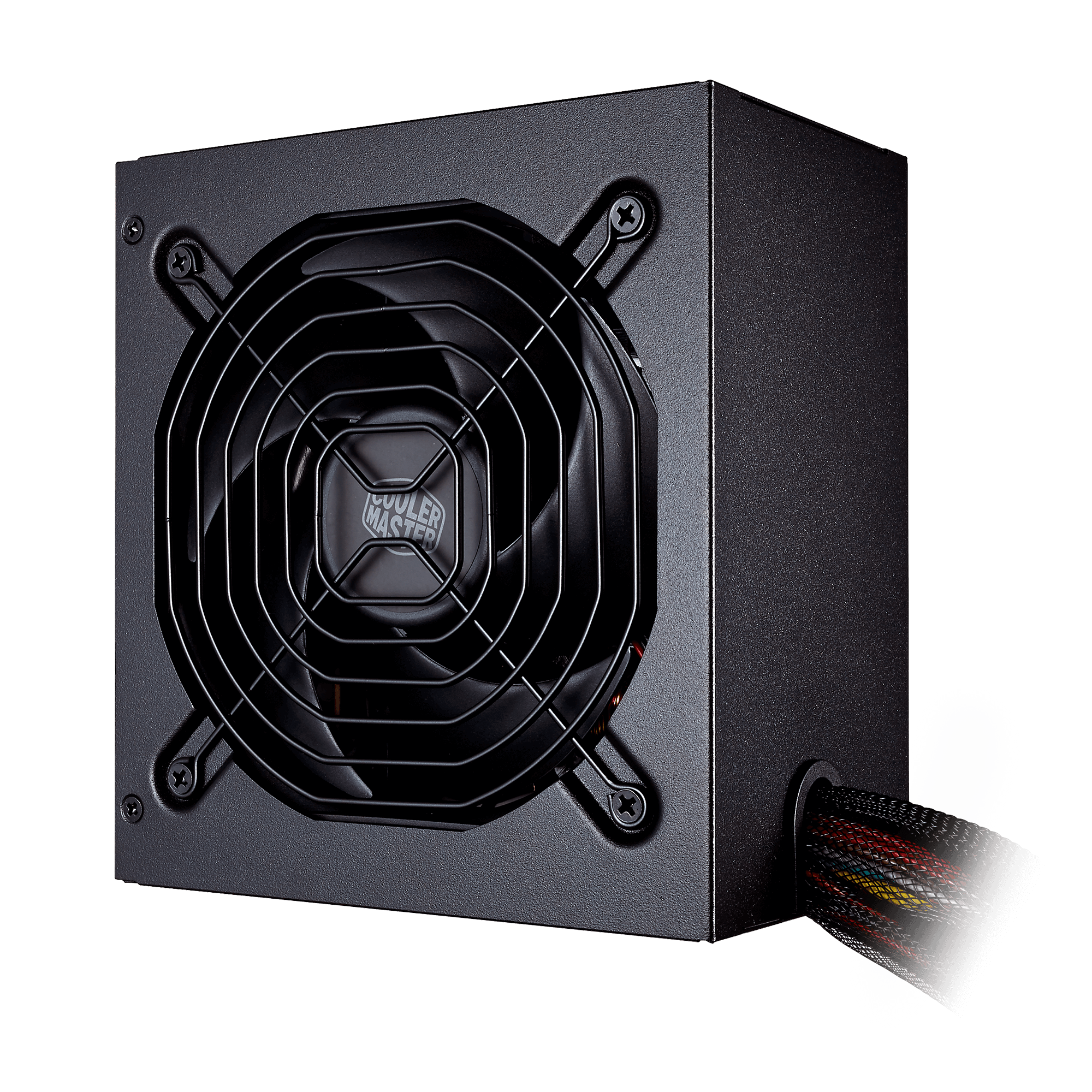

GX Bronze 450 image number 8
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450
GX Bronze 450

80 Plus Bronze Power Supply

GX Bronze 450

The GX Bronze offers the stability and reliability of a highend PSU without a huge jump in price from entry level offerings.

Specifications

  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • FDD Cable 4 Pin Connectors 1
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • MTBF >100,000 hours @ 25℃ ambient
  • Power Good Signal 100 - 500 ms
  • Fan Size 120mm
  • Warranty 5 Years
  • Category Under 500W
  • Modular Non Modular
  • 80 PLUS Rating 80 PLUS Bronze
  • Fan Bearing HDB
  • ATX Version ATX 12V V2.31
  • 80 Plus Efficiency Bronze
  • Efficiency 85% @ Typical Load
  • Input Voltage 100-240V
  • PCI-e 6+2 Pin Connectors 2
  • SATA Connectors 6
  • Peripheral 4 Pin Connectors 3
  • Protections OVP
  • Protections OPP
  • Protections SCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Hold Up Time 16ms at 80% Load
  • Protections OTP
  • Protections OCP
  • Fan Speed 2500 RPM
  • Input Current 8-4A
  • Model MPX-4501-ACAAB
  • Regulatory CCC
  • Series GX Series
  • Regulatory CE
  • Regulatory TUV-RH
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory KC
