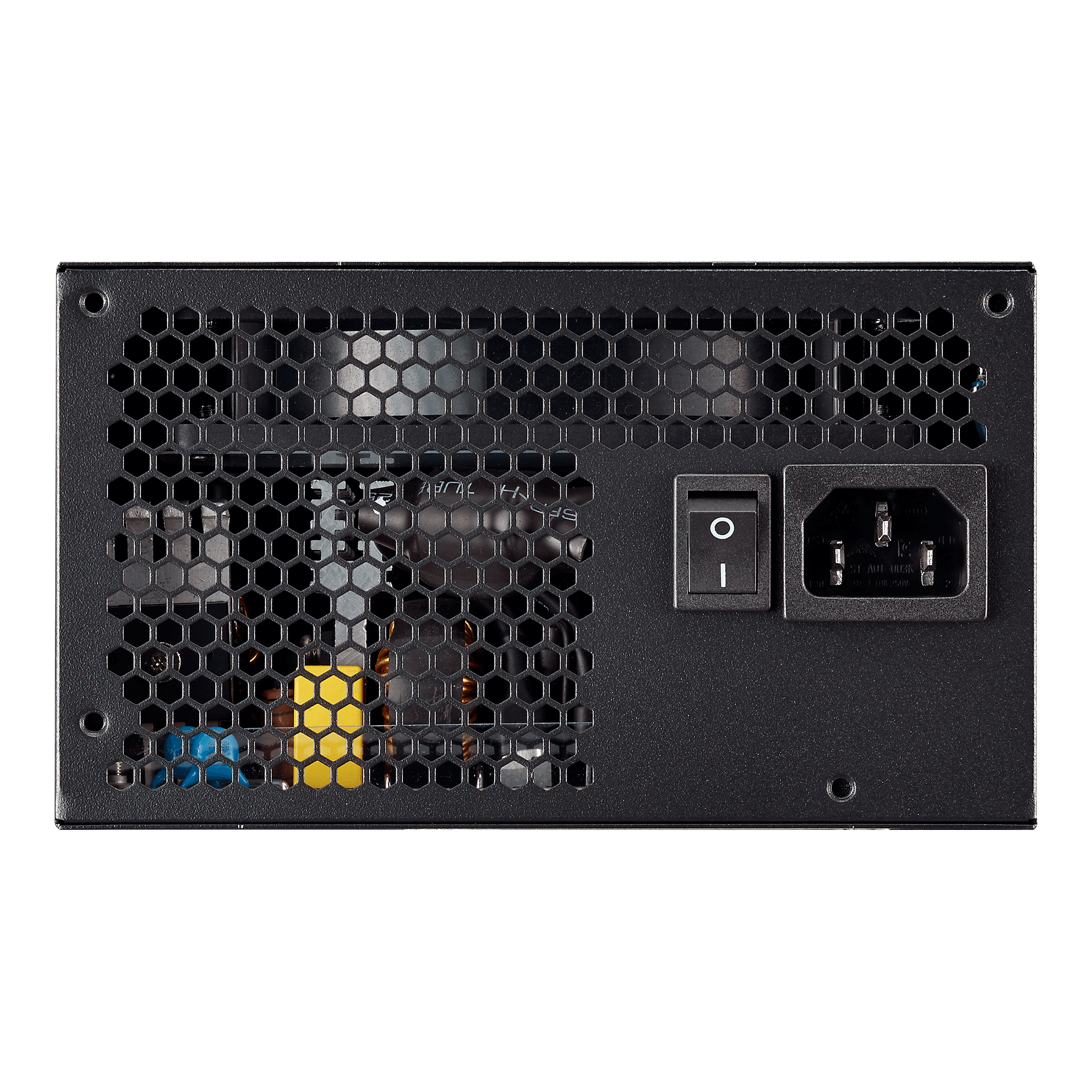

GX Bronze 550 image number 5
GX Bronze 550 image number 6
GX Bronze 550 image number 7
GX Bronze 550 image number 8
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550
GX Bronze 550

80 Plus Bronze Power Supply

GX Bronze 550

The GX Bronze offers the stability and reliability of a highend PSU without a huge jump in price from entry level offerings.

Specifications

  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • FDD Cable 4 Pin Connectors 1
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • MTBF >100,000 hours @ 25℃ ambient
  • Power Good Signal 100 - 500 ms
  • Fan Size 120mm
  • Category 500 to 750W
  • Warranty 5 Years
  • Modular Non Modular
  • 80 PLUS Rating 80 PLUS Bronze
  • Fan Bearing HDB
  • ATX Version ATX 12V V2.31
  • 80 Plus Efficiency Bronze
  • Efficiency 85% @ Typical Load
  • Input Voltage 100-240V
  • PCI-e 6+2 Pin Connectors 2
  • SATA Connectors 6
  • Peripheral 4 Pin Connectors 3
  • Protections OVP
  • Protections OPP
  • Protections SCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Hold Up Time 16ms at 80% Load
  • Protections OTP
  • Protections OCP
  • Model MPX-5501-ACAAB
  • Fan Speed 2500 RPM
  • Input Current 8-4A
  • Regulatory CCC
  • Series GX Series
  • Regulatory CE
  • Regulatory TUV-RH
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory KC
