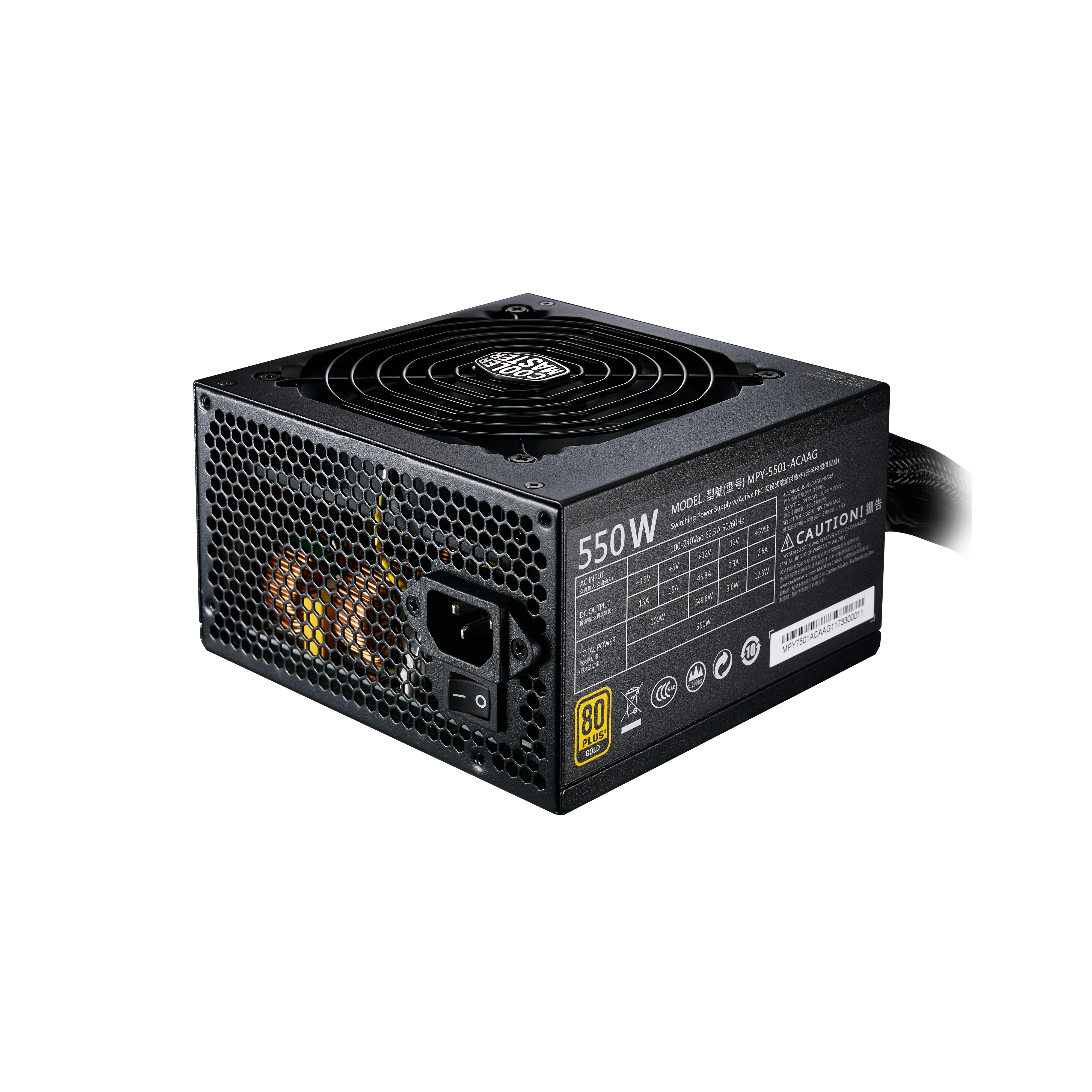

MWE Gold 550 image number 0

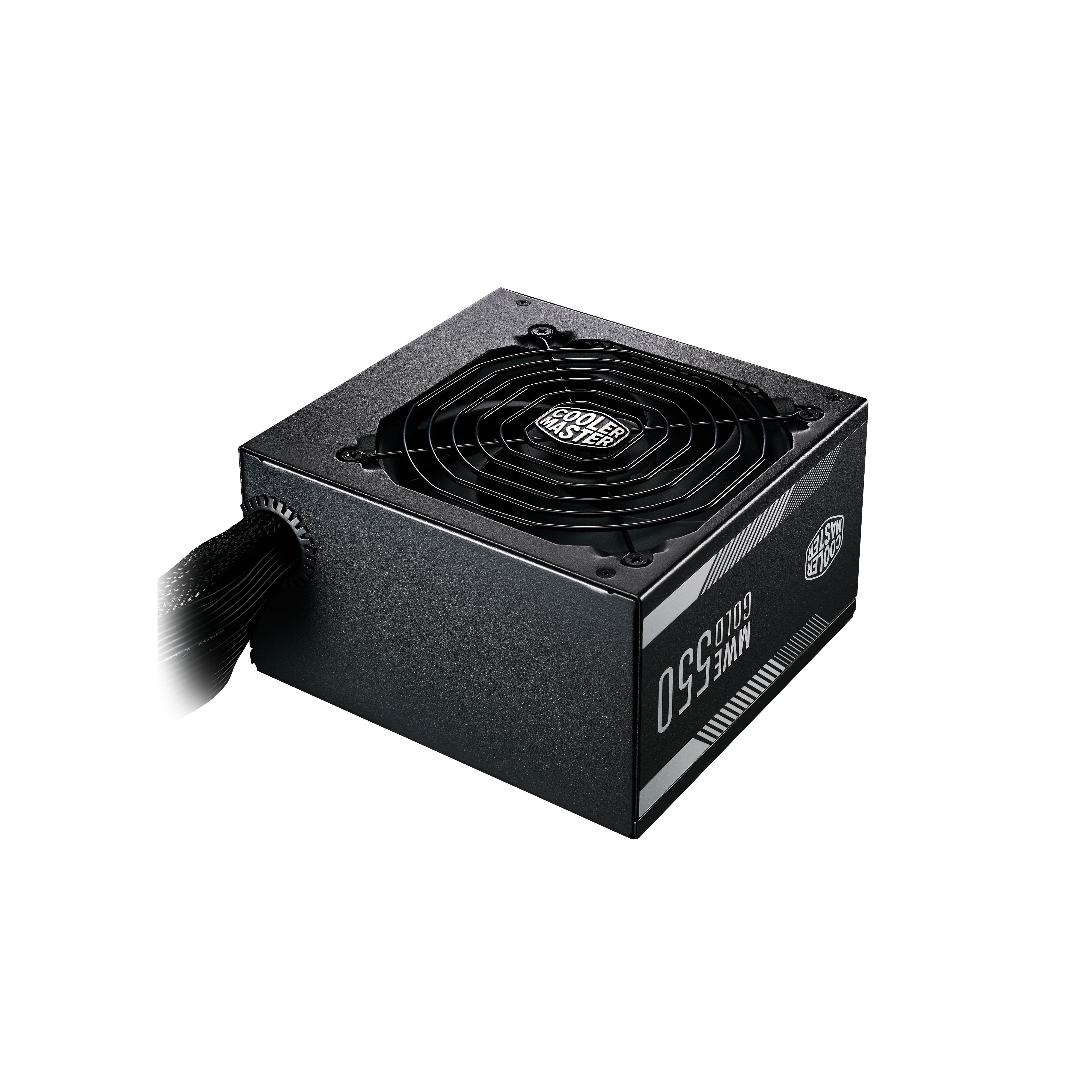

MWE Gold 550 image number 1

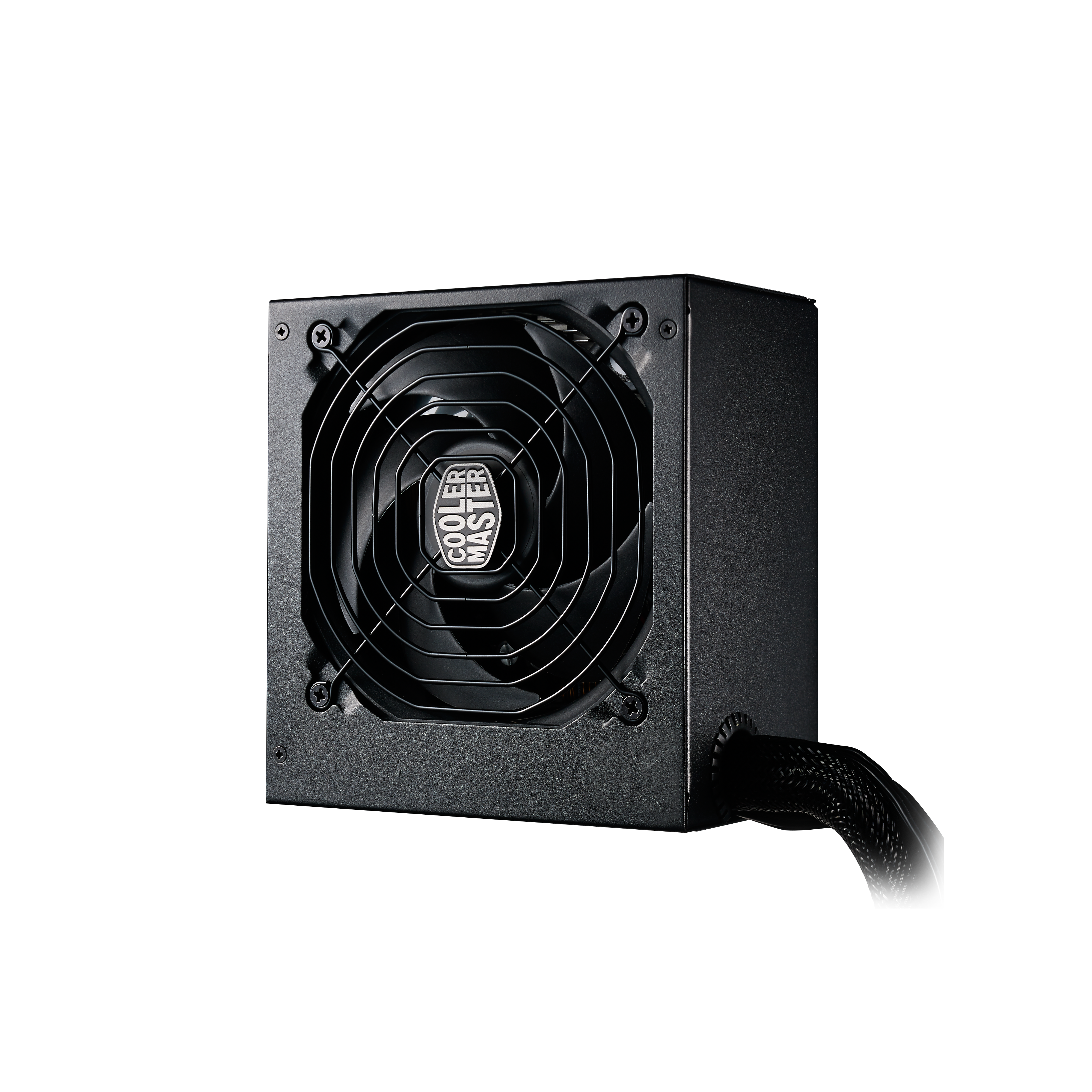

MWE Gold 550 image number 2

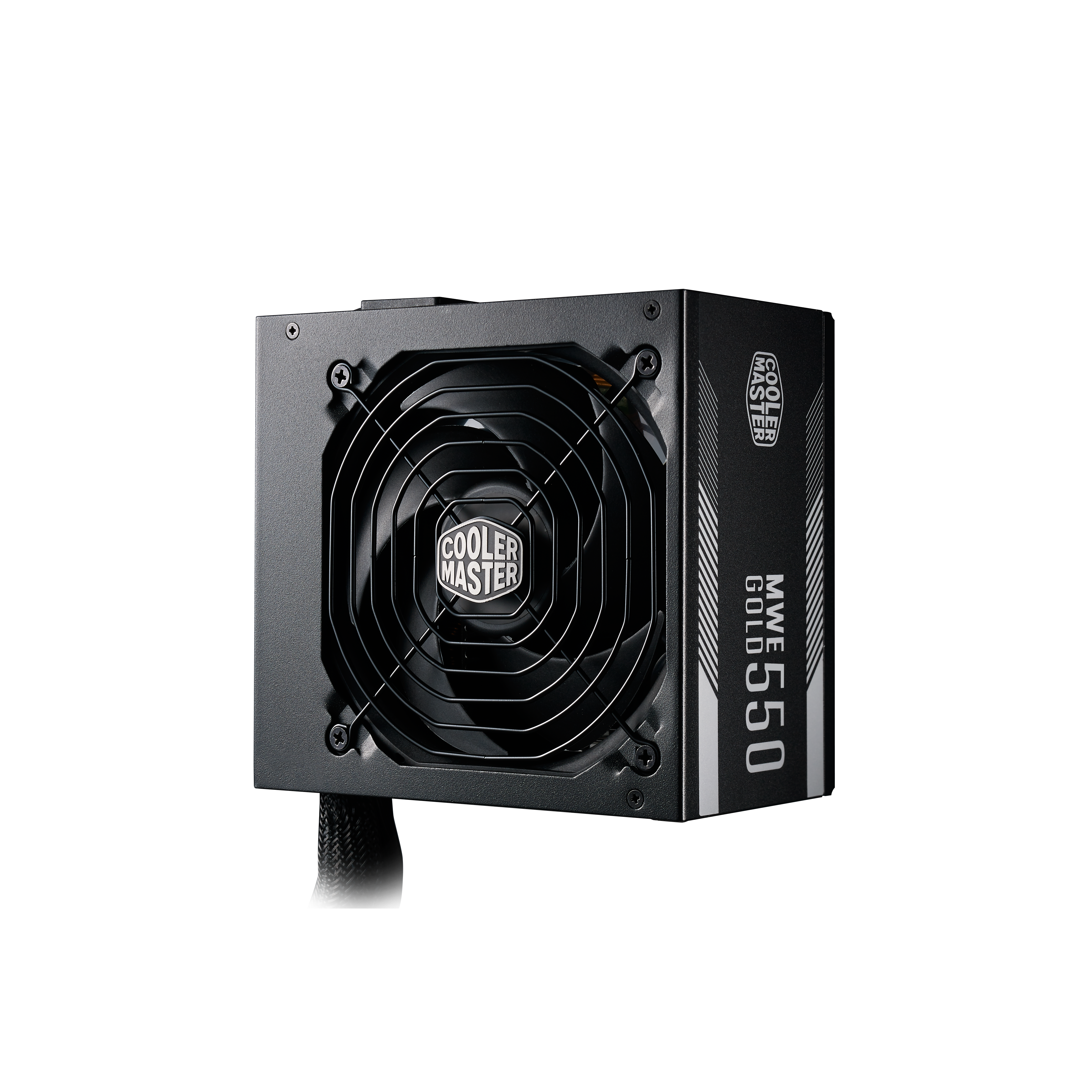

MWE Gold 550 image number 3
MWE Gold 550 image number 4
MWE Gold 550 image number 5

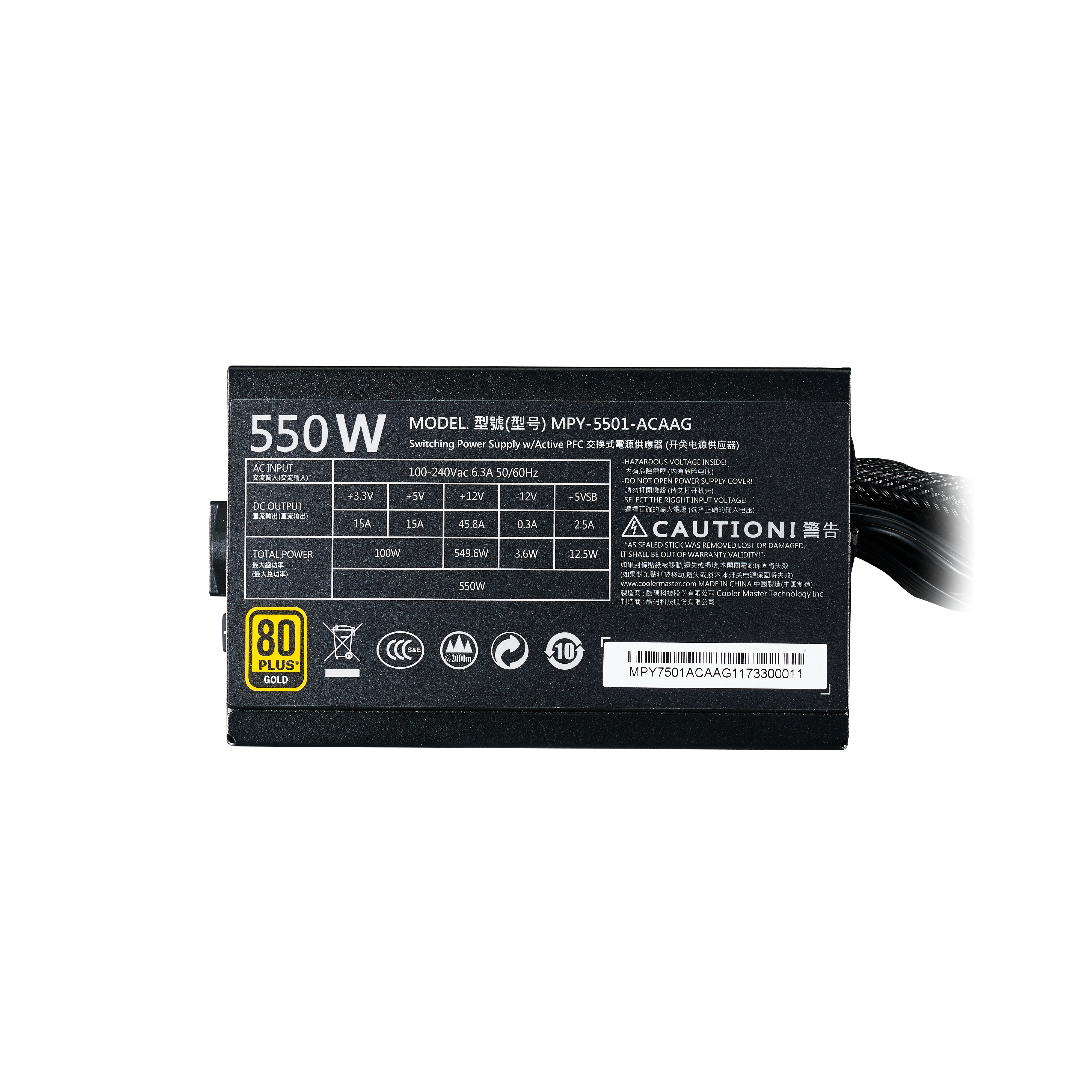

MWE Gold 550 image number 6
MWE Gold 550 image number 7

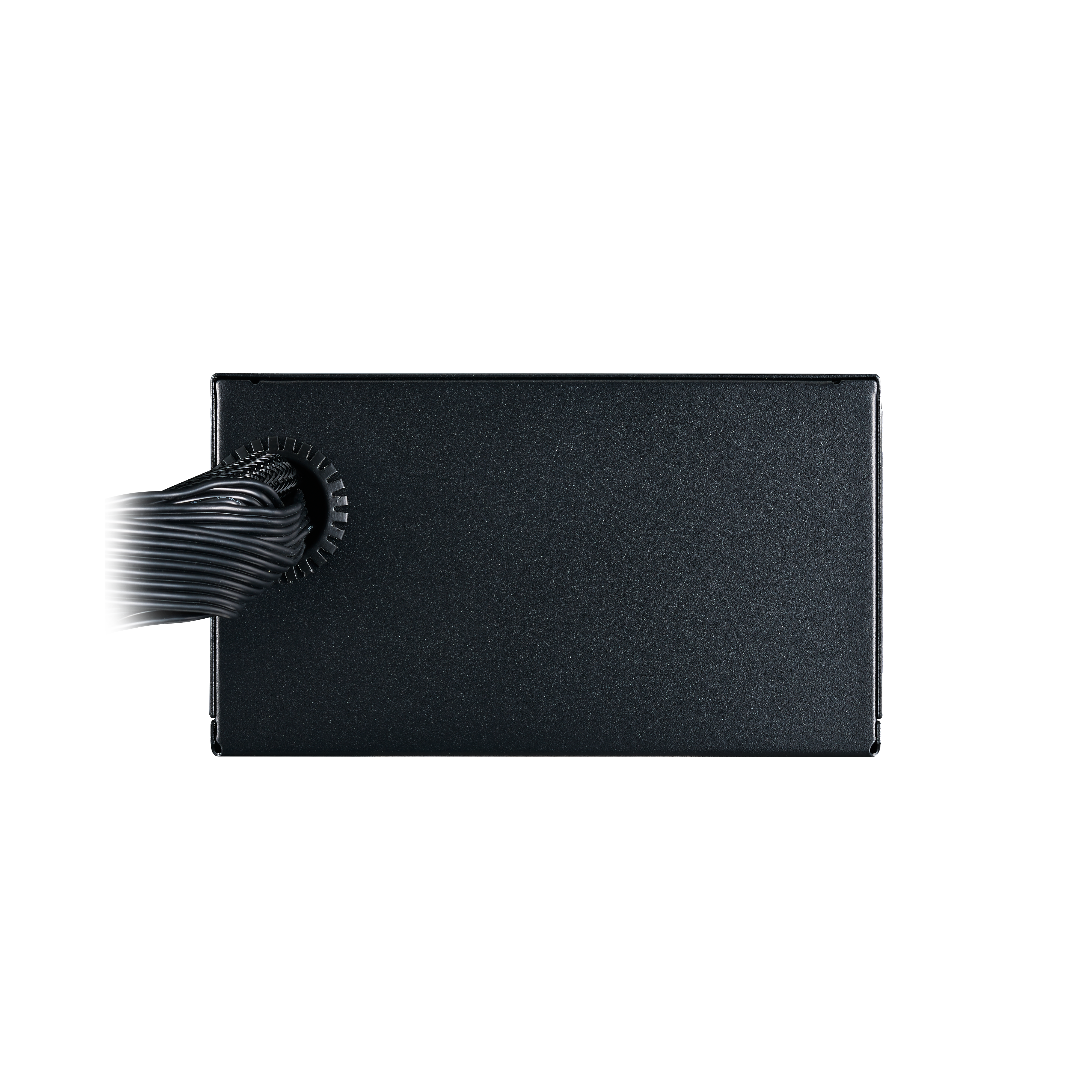

MWE Gold 550 image number 8

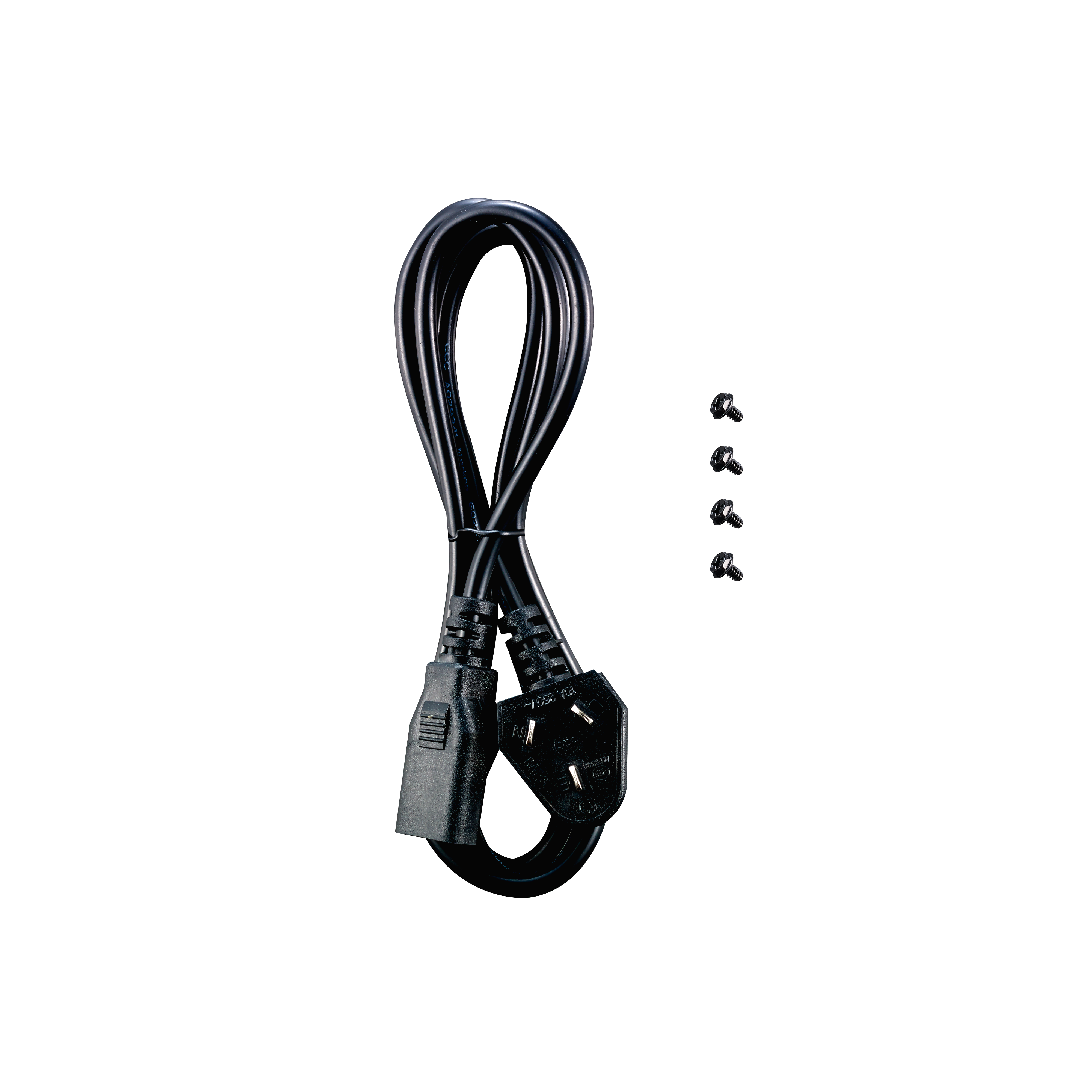

MWE Gold 550 image number 9

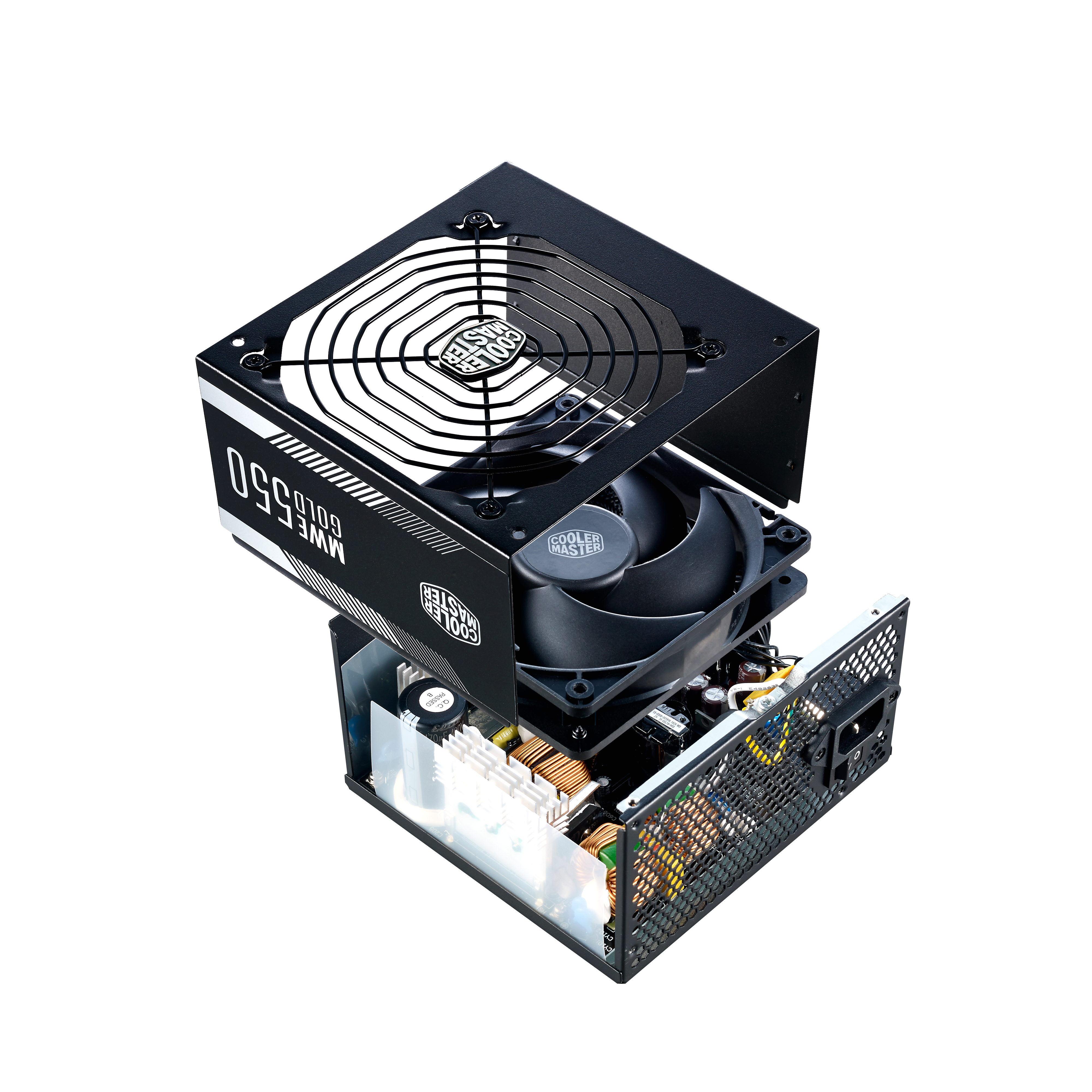

MWE Gold 550 image number 10
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550
MWE Gold 550

Be Bold, Power With Gold

MWE Gold 550

• 80 Plus Gold Certified

• 120mm LDB Fan

• Advanced Circuitry

• Flat & Flexible Cables

• 5 Year Warranty

Specifications

  • PFC Active PFC
  • ErP 2013 Lot 6 Yes
  • FDD Cable 4 Pin Connectors 1
  • MB 24 Pin Connectors 1
  • CPU 12V 4+4 Pin Connectors 1
  • Category 500 to 750W
  • Fan Size 120mm
  • Fan Bearing LDB
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • Operating Temperature 0-45°C
  • 80 Plus Efficiency Gold
  • Modular Non Modular
  • Input Frequency 50/60Hz
  • ATX Version ATX 12V V2.31
  • SATA Connectors 8
  • Input Voltage 100-240V
  • PCI-e 6+2 Pin Connectors 2
  • Series MWE Gold Series
  • Peripheral 4 Pin Connectors 3
  • Hold Up Time >14ms at 100% load
  • Protections OVP
  • Protections OPP
  • Efficiency 90% Typically
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections SCP
  • Model MPY-5501-ACAAG
  • Protections UVP
  • Input Current 6.3A
  • Protections OTP
  • Protections OCP
  • Product Name MWE Gold 550
  • Regulatory CCC
  • Regulatory CE
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory CB
  • Regulatory TUV-SUD
