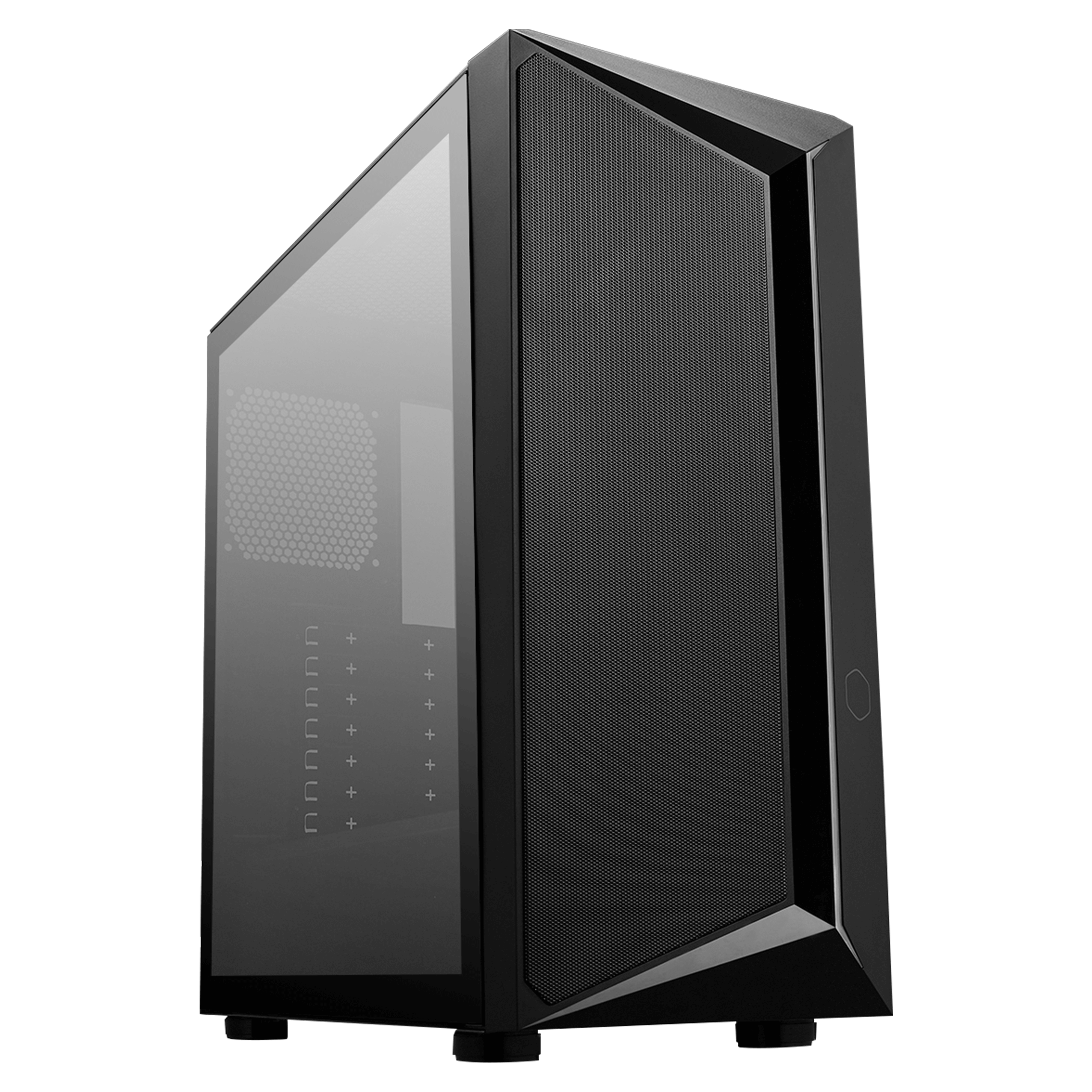

CMP 510 image number 0
CMP 510 image number 1
CMP 510 image number 2

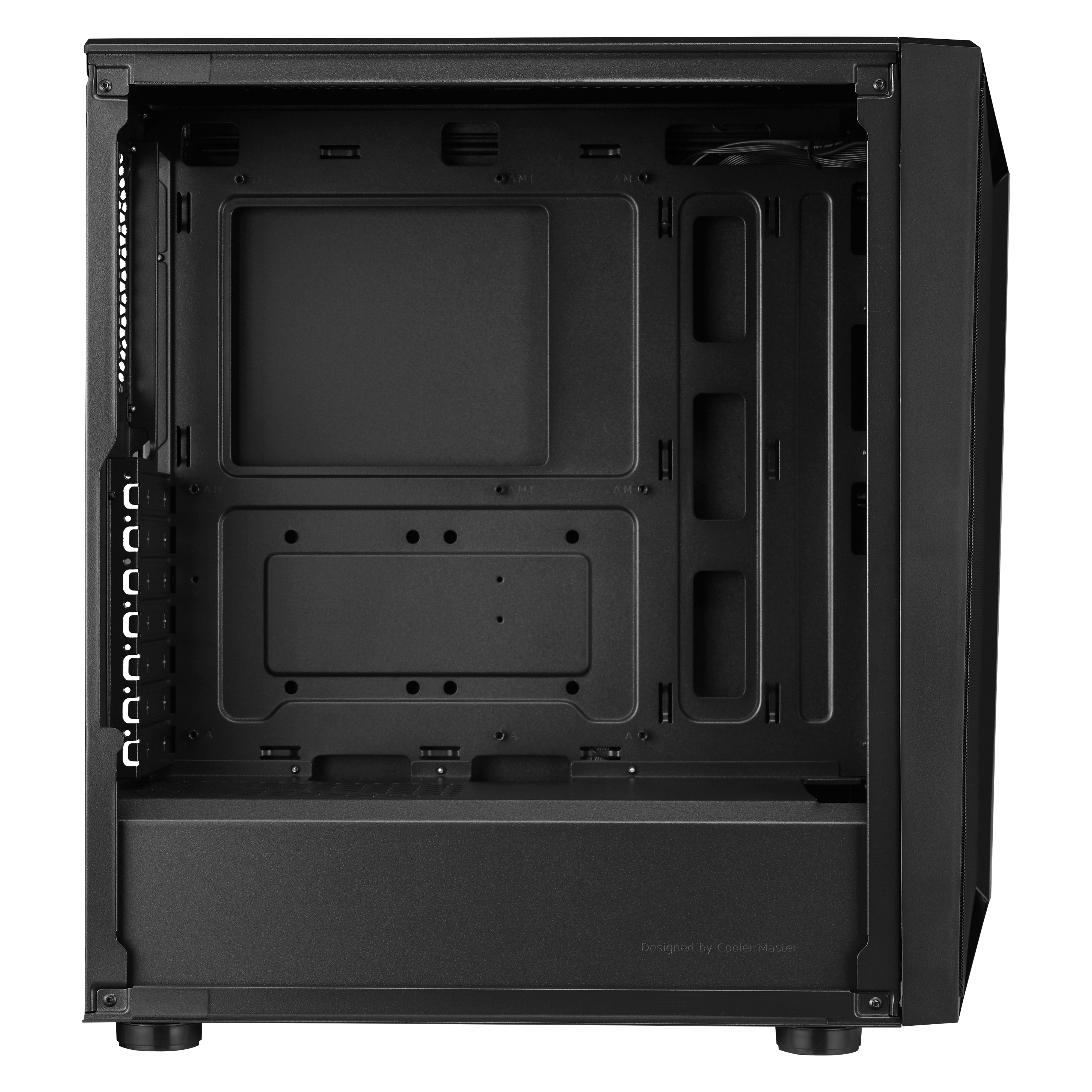

CMP 510 image number 3

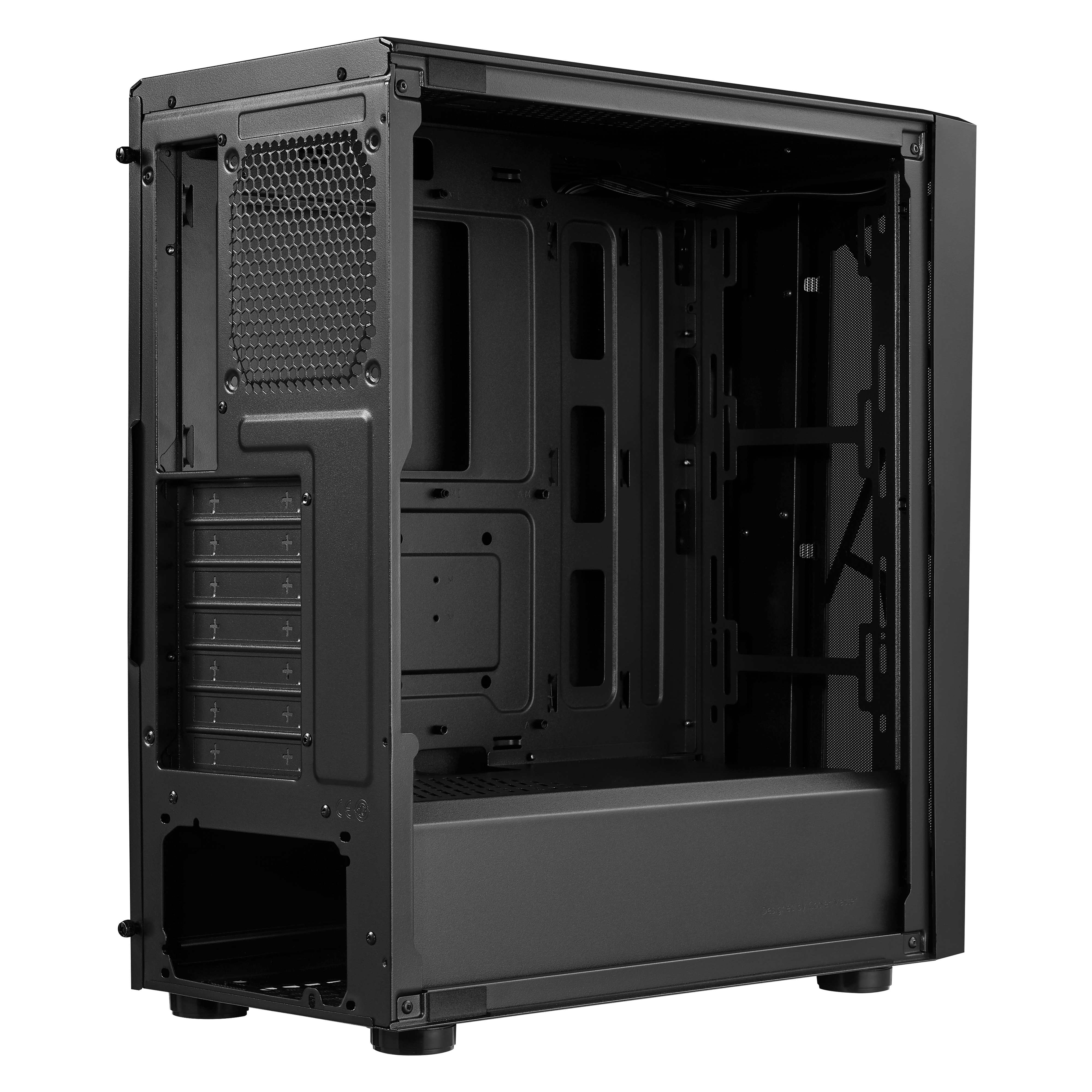

CMP 510 image number 4
CMP 510 image number 5
CMP 510 image number 6

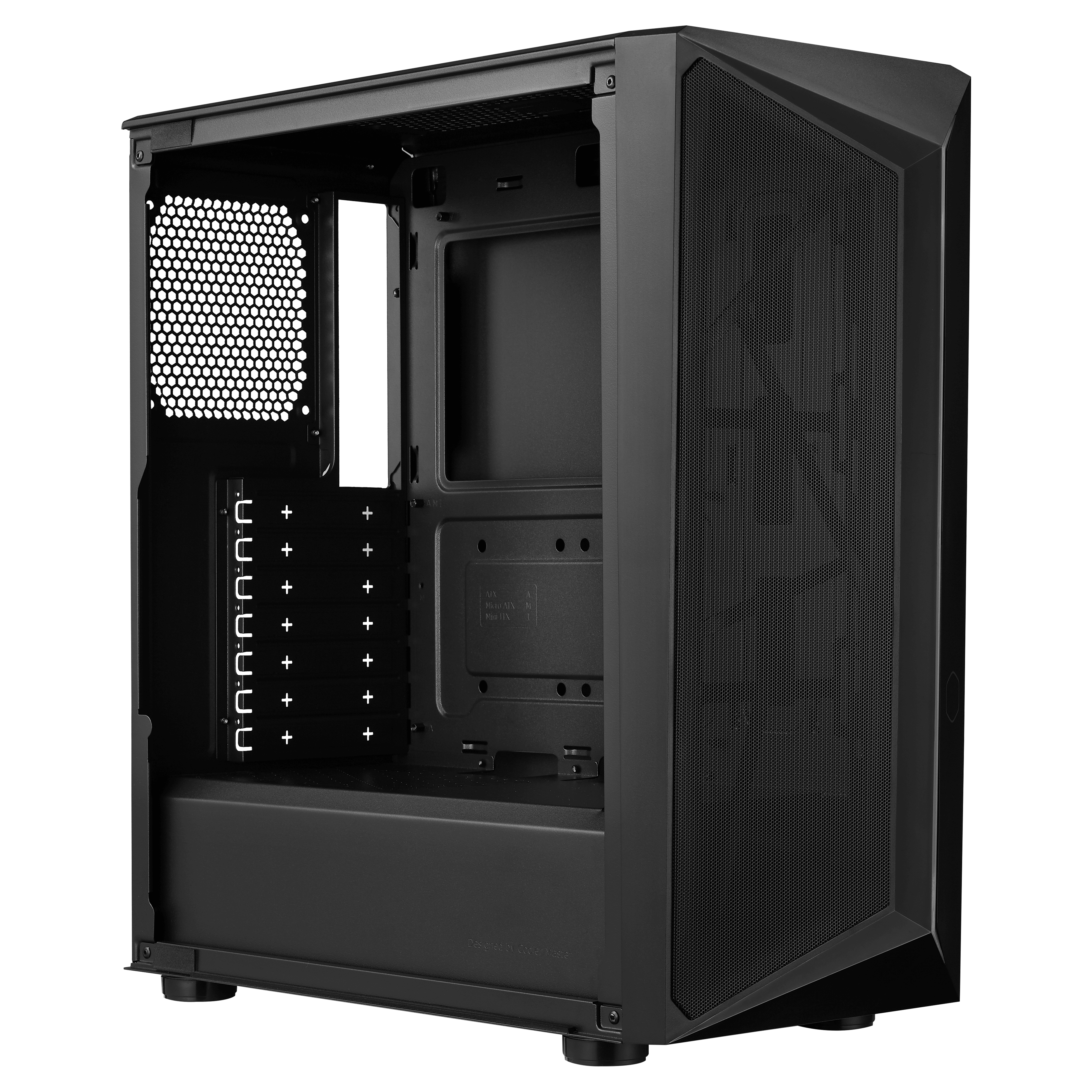

CMP 510 image number 7
CMP 510 image number 8
CMP 510 image number 9
CMP 510 image number 10

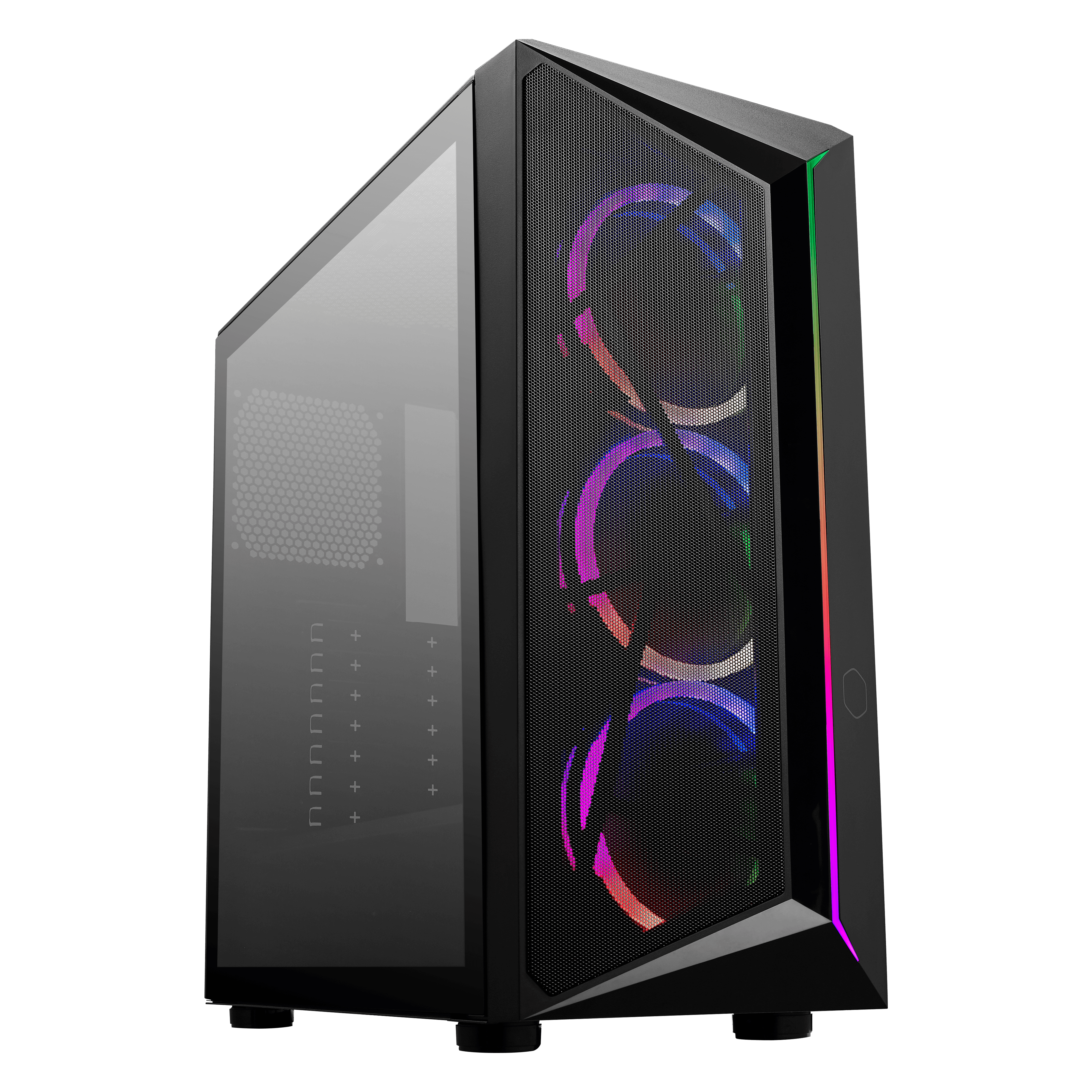

CMP 510 image number 11
CMP 510 image number 12
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510
CMP 510

The Saber's Edge

CMP 510

With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel.

model

規格

  • 產品型號 CP510-KGNN-S00, CP510-KGNN-S01
  • 外觀顏色 Black
  • 材質 - 外部 Steel, Plastic
  • 材質 - 左側板 Tempered Glass
  • 尺寸 (長x寬x高) 445 x 204 x 463mm (Incl. Protrusions), 436 x 204 x 448mm (Excl. Protrusions)
  • 容量 39.85L (exlc. Protrusions)
  • 主機板支援 Mini-ITX, Micro-ATX, ATX
  • PCI 擴充槽 7
  • 2.5"/3.5" 硬碟架 (複合式) 2
  • 2.5" 硬碟架 2
  • I/O 面板 1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic), 1x ARGB Controller
  • 預裝風扇 - 上方 N/A
  • 預裝風扇 - 前方 3 x 120mm ARGB Fan (CP510-KGNN-S00)
  • 預裝風扇 - 後方 N/A
  • 風扇支援 - 上方 2x 120mm, 2x 140mm
  • 風扇支援 - 前方 3x 120mm, 2x 140mm
  • 風扇支援 - 後方 1x 120mm
  • 水冷支援 - 上方 120 / 240mm (Memory bar height limit 35mm, First assemble the memory and then assemble the Radiator)
  • 水冷支援 - 前方 120 / 140 / 240 / 280mm
  • 水冷支援 - 後方 120mm
  • 預留安裝空間 - CPU 散熱器 161mm
  • 預留安裝空間 - 電源供應器 160mm
  • 預留安裝空間 - 顯示卡 350mm (w/o front fans & radiator)
  • 整線空間 18.5mm
  • 防塵濾網 Top, Bottom
  • 電源供應器類型 Bottom Mount, ATX
  • 保固 2 years
  • 尺寸 Mid Tower
  • 系列 CMP Series
