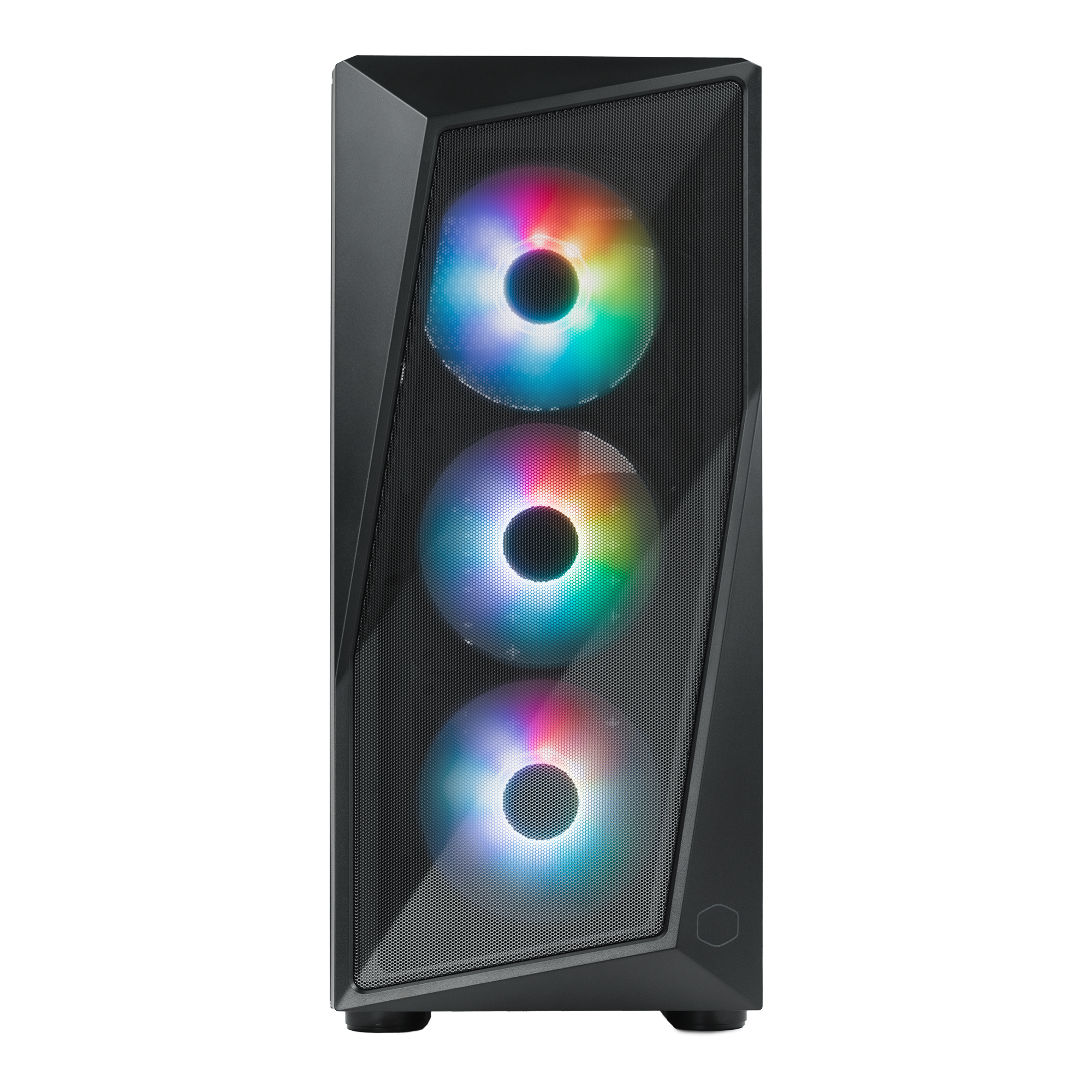

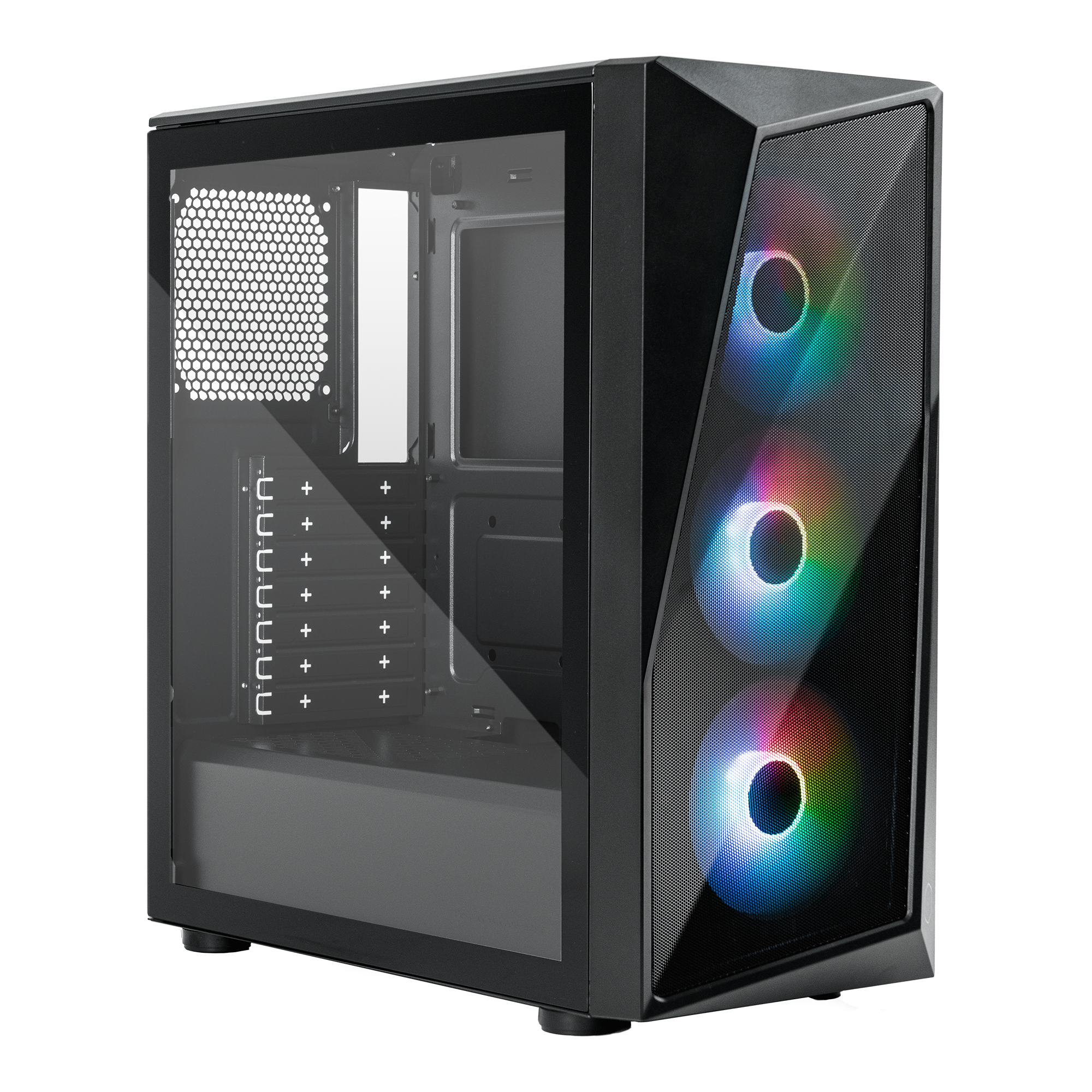

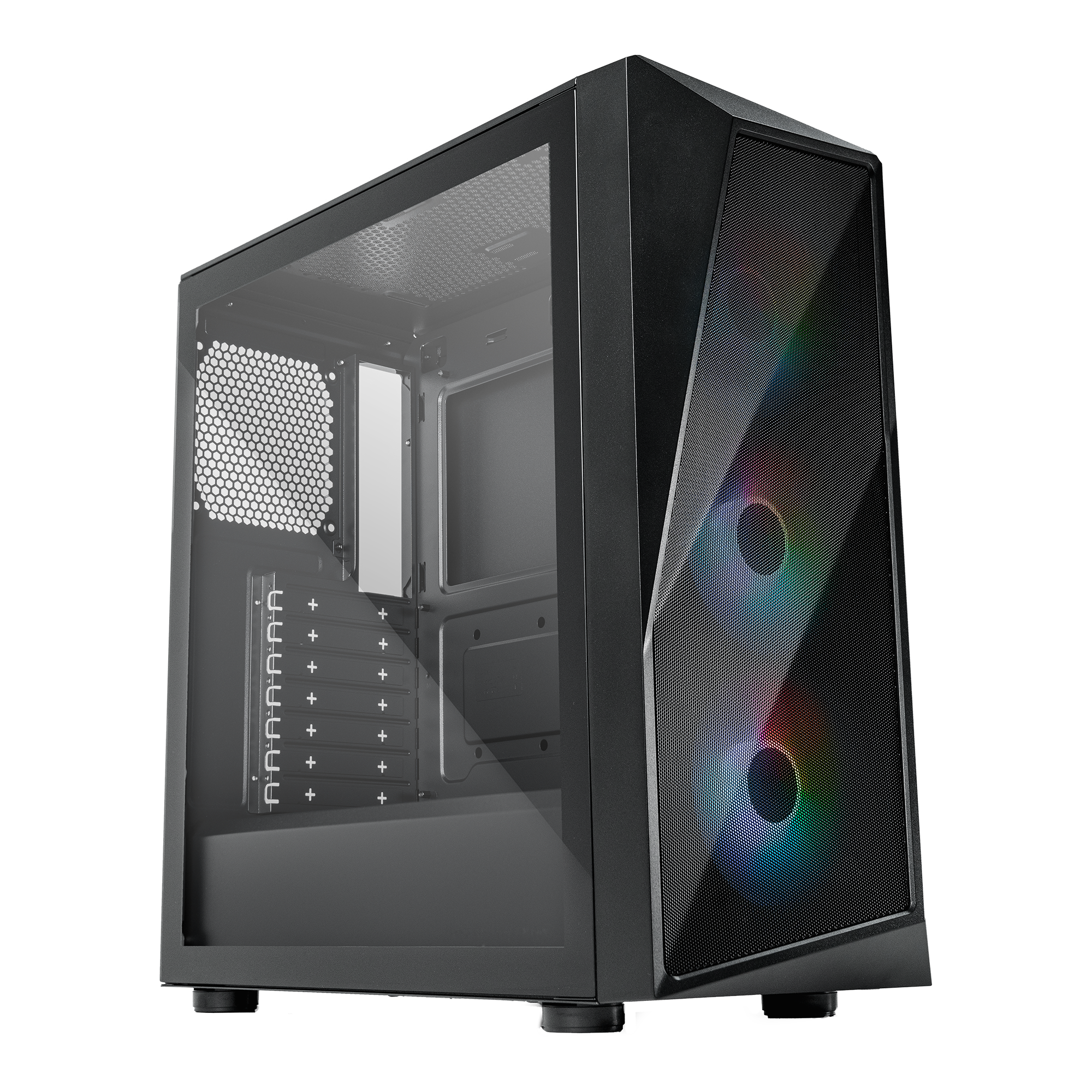

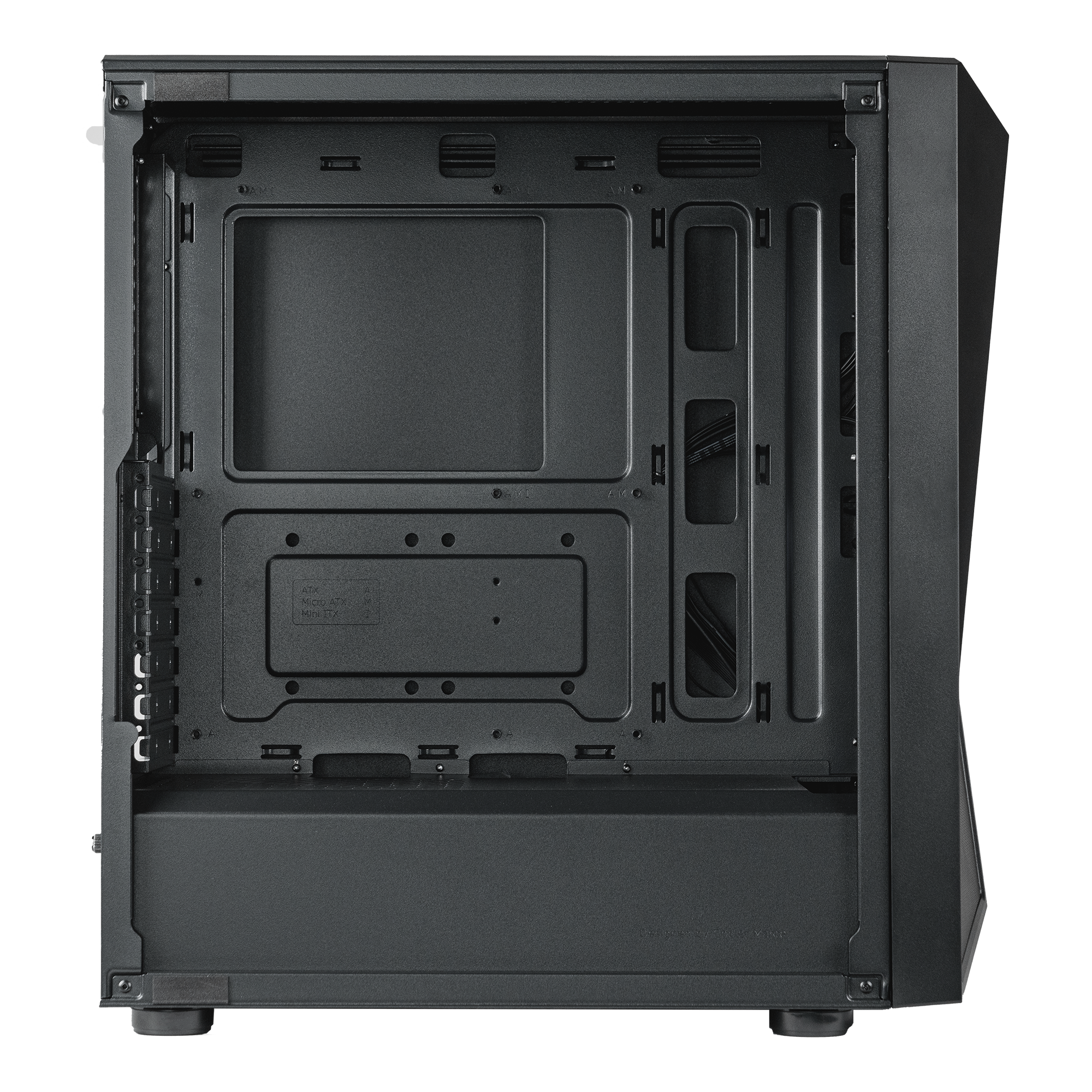

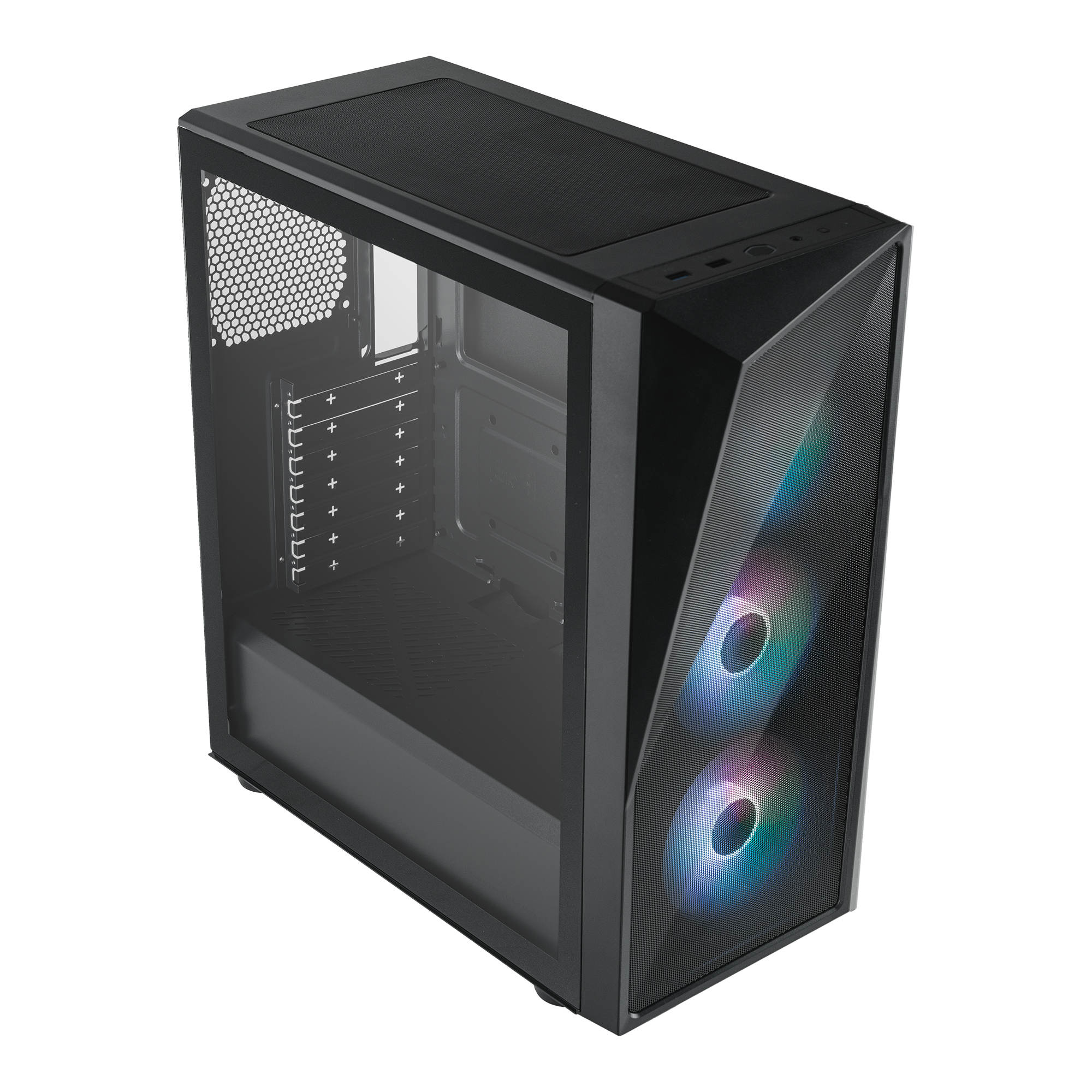

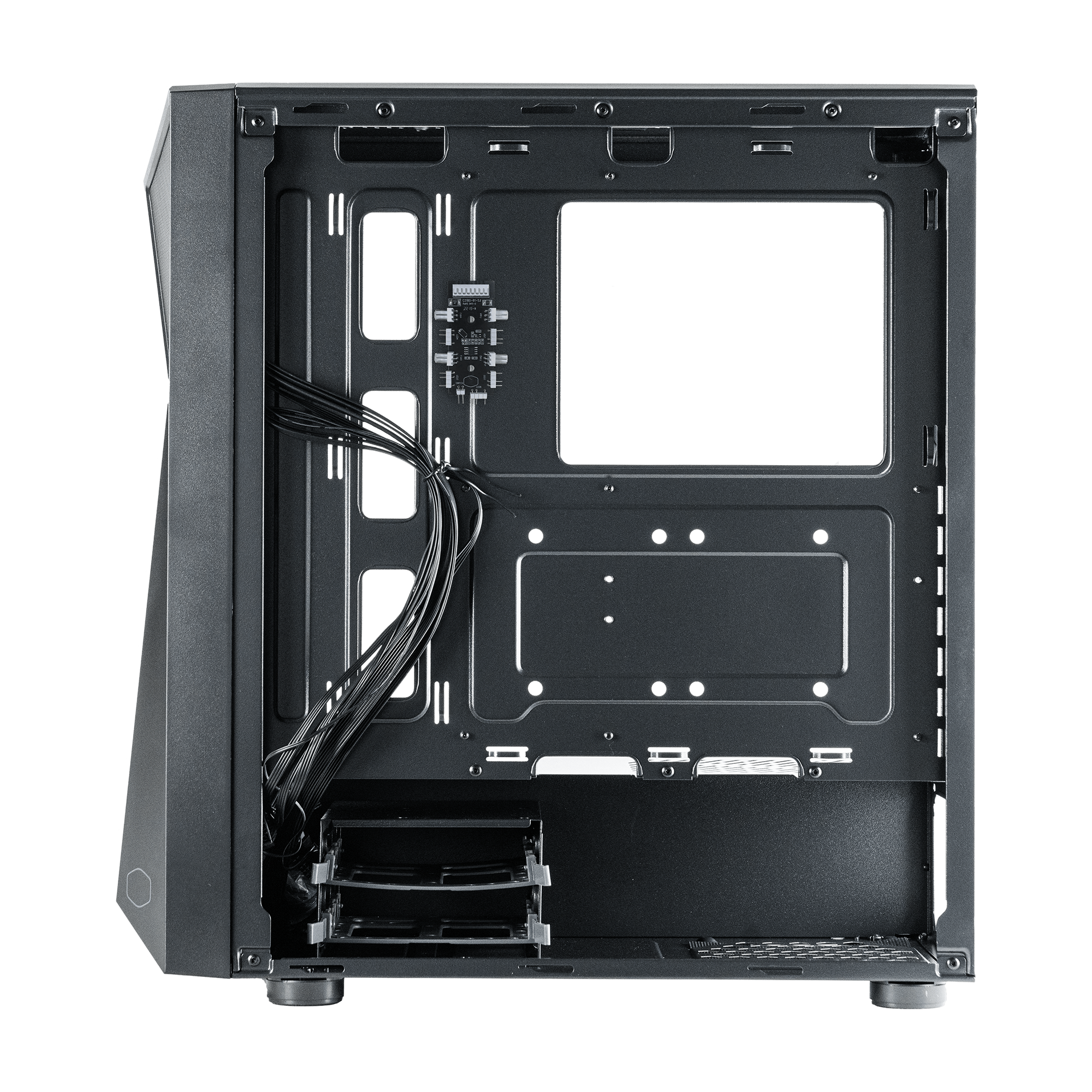

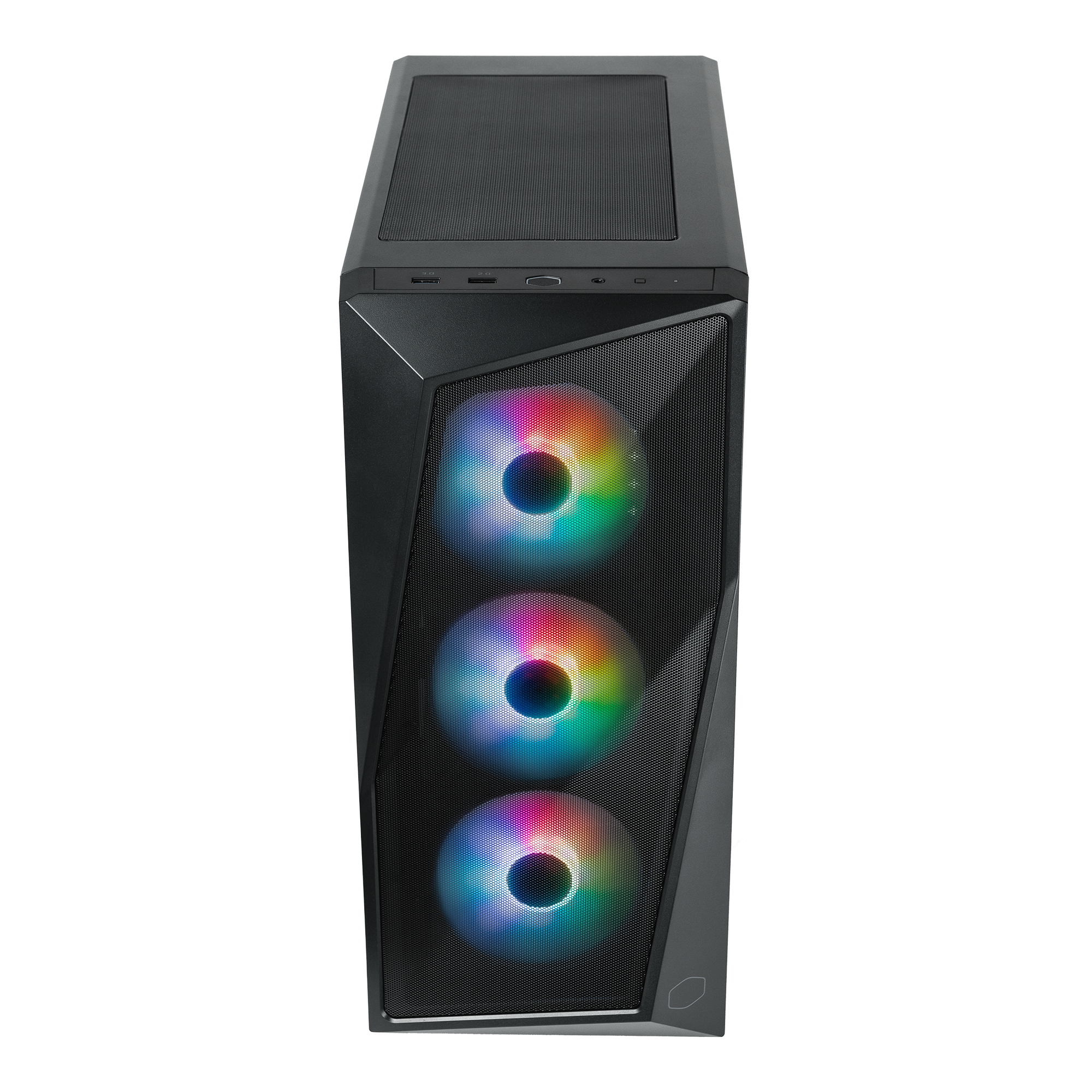

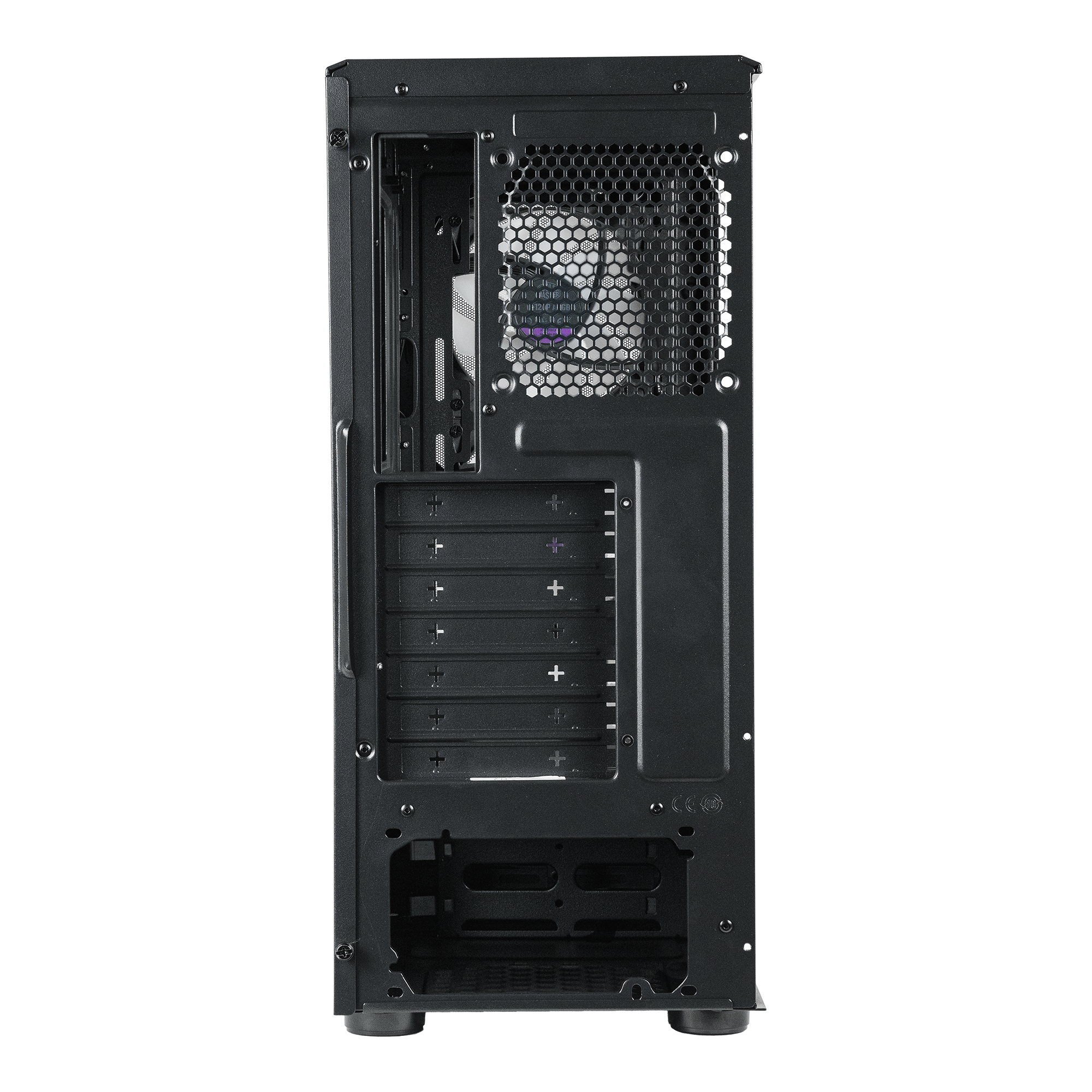

CMP 520 ARGB ATX PC Case image number 0
CMP 520 ARGB ATX PC Case image number 1
CMP 520 ARGB ATX PC Case image number 2
CMP 520 ARGB ATX PC Case image number 3
CMP 520 ARGB ATX PC Case image number 4
CMP 520 ARGB ATX PC Case image number 5
CMP 520 ARGB ATX PC Case image number 6
CMP 520 ARGB ATX PC Case image number 7
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case
CMP 520 ARGB ATX PC Case

Cutting Edge Brilliance

CMP 520 ARGB ATX PC Case

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.

model

規格

  • 產品型號 CP520-KGNN-S00
  • 外觀顏色 Black
  • 材質 - 外部 Steel, Plastic
  • 材質 - 左側板 Tempered Glass
  • 尺寸 (長x寬x高) 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions)
  • 容量 41.34L (Excl. Protrusions)
  • 主機��支援 Mini-ITX, Micro-ATX, ATX
  • PCI 擴充槽 7
  • 5.25" 硬碟架 0
  • 2.5"/3.5" 硬碟架 (複合式) 2
  • 2.5" 硬碟架 2
  • I/O 面板 - USB 埠 1x USB 3.2 Gen 1 Type A, 1x USB 2.0
  • I/O 面板 - 音效輸入/輸出 1x 3.5mm Headset Jack (Audio+Mic)
  • ARGB 控制器 ARGB Fans Hub
  • 預裝風扇 - 上方 N/A
  • 預裝風扇 - 前方 3x CF120 ARGB
  • 預裝風扇 - 後方 N/A
  • 風扇支援 - 上方 2x 120mm, 2x 140mm
  • 風扇支援 - 前方 3x 120mm, 2x 140mm
  • 風扇支援 - 後方 1x 120mm
  • 水冷支援 - 上方 120 / 240mm* (*RAM height below 35mm)
  • 水冷支援 - 前方 120 / 140 / 240 / 280mm
  • 水冷支援 - 後方 120mm
  • 預留安裝空間 - CPU 散熱器 161mm
  • 預留安裝空間 - 電源供應器 160mm
  • 預留安裝空間 - 顯示卡 350mm (w/o front fans & radiator)
  • 整線空間 18.5mm
  • 防塵濾網 Top, Bottom
  • 電源供應器類型 Bottom Mount, ATX
  • 保固 2 years
  • 尺寸 Mid Tower
  • 系列 CMP Series
  • Back Connector Motherboard Support No

Downloads

  • CMP 520 Product Sheet (CF120 ARGB+Hub) SN after CP520KGNNS001224700001 Download
  • CMP 520 Product Sheet (CF120P ARGB+CF120S ARGB) Download
  • CMP 520 Manual (CF120 ARGB+ Hub SN after CP520KGNNS001224700001) Download
